Expandable ListGrid - vertical alignment problems

[karel.brezina]

Hi,

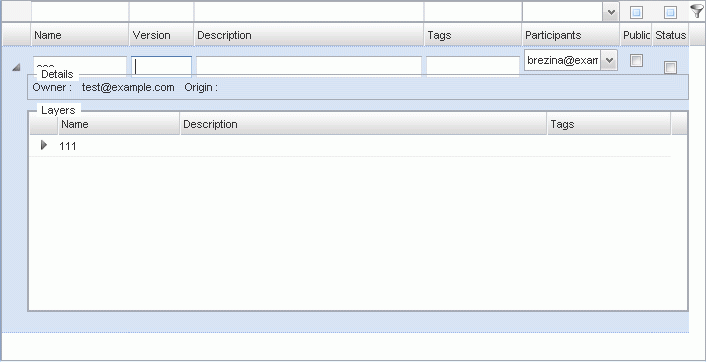

I use expandable editable ListGrid. Once I expand a row and doubleclick it to start editing, the editing row is not vertically aligned (see attached image). As you can see on the image, there are 4 kinds of fields: TextItem (4x), ComboBoxItem, CheckBoxItem (editable), CheckBoxItem (read-only). Each item type is aligned differently.

What is the best approach to make them aligned?

Another, less important problem is that the editing fields outreach into expanded area. I believe this can be solved by a decent margin.

Thanks.

My environment:

Win-XP
GWT 2.0.3
SmartGWT 2.2
SUN Java 1.6.0_12

[uranio255]

Just a bump.

I am getting exactly the same problem. Like karel.brezina, I have not found a solution for the misalignment of form elements while in edit mode which causes the rest of the expanded row to get out of aligment too.

[uranio255]

Maybe this could work for some people as a workaround: do not allow editing of a given record if it is already expanded. If we do that, we will not have to deal with this sort of misalignments and its side-effects.

In order to do this, try the following on the ListGrid.

/** Set the grid to edit a record when double-clicked. **/
grid.setEditEvent(ListGridEditEvent.DOUBLECLICK);
/** When entering edit mode, check that the record being edited is not already expanded, if so, collapse it. **/
grid.addEditorEnterHandler(new EditorEnterHandler() {
    public void onEditorEnter(final EditorEnterEvent event) {
        if(event.getRecord().getAttributeAsBoolean("expanded")) {
            grid.collapseRecord(grid.getSelectedRecord());
        }
    }
});

[Isomorphic]

There was a recent fix in this area that could correct this issue. Please let us know if you still see the problem using the latest nightly from smartclient.com/builds.

[uranio255]

I downloaded the latest jars I could find in the nightly builds (dated 26-Sep-2010 20:08) and the problem is still there.

[Isomorphic]

Clear your cache and look for other sources of possible staleness. If you are still experiencing a problem, please create a simplified, standalone test case that reproduces the issue.
