Problem with 'flicker' on sorted ListGrid

[dczech]

I am having a problem with a double fetch on a ListGrid when I setData with a ResultSet. This is a follow-up question to this thread. I'm using the following SC_SNAPSHOT-2011-01-04/PowerEdition Deployment (built 2011-01-04), Firefox 3.6.15, Windows 7.

Here is a small example program to demonstrate what I am seeing:

package com.smartgwt.sample.client;

import com.smartgwt.client.data.DSCallback;
import com.smartgwt.client.data.DSRequest;
import com.smartgwt.client.data.DSResponse;
import com.smartgwt.client.data.DataSource;
import com.smartgwt.client.data.ResultSet;
import com.smartgwt.client.types.FetchMode;
import com.smartgwt.client.types.TextMatchStyle;
import com.smartgwt.client.widgets.IButton;
import com.smartgwt.client.widgets.events.ClickEvent;
import com.smartgwt.client.widgets.events.ClickHandler;
import com.smartgwt.client.widgets.grid.ListGrid;
import com.smartgwt.client.widgets.layout.VLayout;

public class RefreshGridTest
	extends VLayout
{
	private ListGrid grid;
	private static final int REFRESH_ROW_OFFSET = 15;

	public RefreshGridTest()
	{
		setMargin(10);
		setWidth(400);
		setHeight(500);
		setMembersMargin(5);

		grid = new ListGrid();
		grid.setDataSource(DataSource.get("PING"));
		grid.setWidth100();
		grid.setHeight100();
		grid.setShowFilterEditor(true);
		grid.setFetchDelay(500);
		grid.setFilterOnKeypress(true);
		grid.setAutoFetchData(true);

		addMember(grid);

		final IButton button = new IButton("refresh");
		button.addClickHandler(new ClickHandler() {
			@Override
			public void onClick(ClickEvent event) {
				refresh();
			}
		});

		addMember(button);
	}

	private void refresh()
	{
		final Integer row[] = grid.getVisibleRows();

		final DSRequest request = new DSRequest();
		request.setStartRow(Math.max(0, row[0] - REFRESH_ROW_OFFSET));
		request.setEndRow(row[1] + REFRESH_ROW_OFFSET);
		request.setTextMatchStyle(TextMatchStyle.SUBSTRING);
		request.setSortBy(grid.getSort());

		final DataSource ds = grid.getDataSource();
		ds.setShowPrompt(false);
		ds.fetchData(grid.getFilterEditorCriteria(), new DSCallback() {

			@Override
			public void execute(DSResponse response, Object rawData, DSRequest request)
			{
				final ResultSet resultset = new ResultSet();
				resultset.setDataSource(ds);
				resultset.setFetchMode(FetchMode.PAGED);
				resultset.setInitialLength(response.getTotalRows());
				resultset.setInitialData(response.getData());

				grid.setData(resultset);

			}
		}, request);
	}
}

Here is the accompanying ds.xml file:

<DataSource schema="PING" dbName="Oracle" tableName="PING" ID="PING" serverType="sql" >
	<fields>
		<field sequenceName="PING_SEQ" primaryKey="true" name="id" type="sequence" hidden="true"></field>
		<field name="name" length="51" type="text">
			<validators>
				<validator type="isUnique" requiresServer="true" />
			</validators>
		</field>
		<field name="other" length="21" type="text">
		</field>
	</fields>
</DataSource>

When the "other" column is filtered and I press the refresh button, only one DSRequest is made and the ListGrid will updates without a 'flicker'.

However, if I press the refresh button with the "other" column sorted, two DSRequests are made and the ListGrid updates with a 'flicker'.

The double fetch seems to be related to when the totalRows is greater than the number of rows returned in the DSResponse and the column is sorted. Is there something I can do differently to avoid the 'flicker' on sorted columns?

[Isomorphic]

You retrieved sorted data, but the ResultSet won't know it's sorted unless you call sortByProperty() on it.

[dczech]

That did not work. This is what I added:

resultset.sortByProperty("other", true);
grid.setData(resultset);

Clicking the refresh button still causes a double-fetch. I also tried to set the sort, which I'd prefer since the "name" column could be sorted too, before the setData.

resultset.setSort(request.getSortBy());
grid.setData(resultset);

But that also caused a double-fetch. Am I misunderstanding the change I was to make?

[Isomorphic]

Just a sanity check: in the RPC tab it shows what component initiated the fetch - what do you see for the two fetches?

[dczech]

The component is blank for both fetches.

Here is the DSRequest for 1st fetch (triggered by the button click):

{
    "dataSource":"PING",
    "operationType":"fetch",
    "data":{
    },
    "startRow":0,
    "endRow":33,
    "sortBy":[
        "other"
    ],
    "textMatchStyle":"substring",
    "showPrompt":false,
    "oldValues":{
    },
    "requestId":"PING$6272"
}

Here is the DSRequest for the 2nd fetch:

{
    "dataSource":"PING",
    "operationType":"fetch",
    "data":{
    },
    "startRow":0,
    "endRow":75,
    "sortBy":[
        "other"
    ],
    "resultSet":[ResultSet ID:isc_ResultSet_1 (created by: undefined)],
    "callback":{
        "caller":[ResultSet ID:isc_ResultSet_1 (created by: undefined)],
        "methodName":"fetchRemoteDataReply"
    },
    "willHandleError":true,
    "showPrompt":false,
    "oldValues":{
    },
    "clientContext":{
        "requestIndex":1
    },
    "requestId":"PING$6273"
}

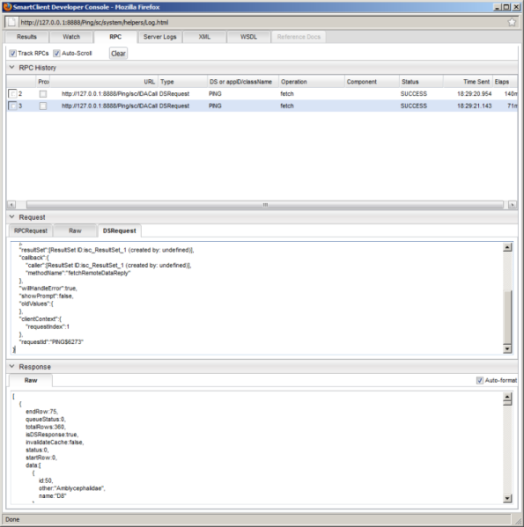

Attached is a low quality screen grab of the SC Developer Console.

[Isomorphic]

Ah - I see the ResultSet is missing an API to set initial sort specifications as part of creation.

We've now added this - as of the next nightly build you should see ResultSet.setInitialSort() which you can specify along with initialLength and initialData when creating the resultSet.

[dczech]

Thanks. That took care of it.

[scarlethue]

Hi, I'm doing a similar thing - but before I commit to using nightly code can you tell me if your scroll bar remains in place after a refresh or does it jump to the top?

Thanks

[scarlethue]

If you're curious; my current approach is to get a set of IDs from the server that represent updated rows since the last refresh. I then update the appropriate rows or add the new ones.

While my approach works I've realised that the overhead of constantly updating the view is minimal especially with a large data set where most of the deltas are off the screen.

[dczech]

Hi, I'm doing a similar thing - but before I commit to using nightly code can you tell me if your scroll bar remains in place after a refresh or does it jump to the top?

The scroll bar remains in place.
