[SmartGWT.mobile] Issues in DataSource calls

[iperdomo]

1. SmartGWT.mobile 1.0
2. Browser: Chromium 17.0.963.83
3. Eclipse IDE 3.7.2 - Google Plugin for Eclipse 2.5.2

Problem #1 - Missing metaDataPrefix on requests

If you read the user_guide.txt of SmartGWT.mobile you'll find the following statement:

"Specifically, the DataSource implementation in SmartGWT.mobile behaves like a RestDataSource with dataFormat:"json"."

If you then refer to the RestDataSource of SmartGWT (http://www.smartclient.com/smartgwt/javadoc/com/smartgwt/client/data/RestDataSource.html) you'll find the following:

If sendMetaData is true, the DSRequest meta data properties will also be present as parameters, prefixed with metaDataPrefix.

Example URL constructed with the metaDataPrefix set to "_" (the default):

[dataURL]?field1=value1&_operationType=fetch&_startRow=0&_endRow=50&_sortBy=-field2&_dataSource=dsName

In this case the server would be able to separate the request's data from the meta data via the "_" prefix.

If the SmartGWT.mobile behaves like a RestDataSource you should be able to define the sendMetaData flag and the metadata should have the default prefix. Instead the metadata is sent without the prefix.

Steps to reproduce:
* Check the online demo: http://smartgwt-mobile.smartclient.com/
* Go to: Data Binding > Table View (Check the request to the server),

{
   operationType: "fetch", dataSource: "continentsDS", requestId: 2,
   startRow: 0, endRow: 1
}

* The metadata parameters should be prefixed with "_", so "_operationType" instead the request goes with "operationType".

Checking the Java implementation you'll find:

@SuppressWarnings("unchecked")
    private void performDSOperation(String opType, Record data,
                    DSCallback callback, DSRequest props)
    {

        // Form a DSRequest
        DSRequest dsRequest = new DSRequest();
        dsRequest.put("operationType", opType);      // <-- this should be configurable?
        dsRequest.put("dataSource", this.get("ID"));
        dsRequest.put("data", data);
        dsRequest.put("callback", callback);
        dsRequest.put("requestId", _getNextRequestId());
        if (props != null) dsRequest.putAll(props);

        // Declined to implement a ton of involved sort logic here...

        sendDSRequest(dsRequest);
    }

Problem # 2 - Exception when data returned contains a null value - Bug in: JSONUtils.getPropertyType

If the data array on a server response contains a record, and the value of one of the properties it's null the operation fails with:

com.google.gwt.core.client.JavaScriptException: (TypeError): Cannot read property 'constructor' of null

Checking the implementation of JSONUtils.getPropertyType:

 public static native String getPropertyType(JavaScriptObject jso, String keyName) /*-{
        var value = jso[keyName];
        var type = typeof value;
        if (type == 'object') {     // <--- Here you need to check if is null since: typeof null === 'object'
          // (... some code)
        }
        // (... some code)
        return type;
    }-*/;

Sample of response that will make the operation fail:

{
  response: {
    status: 0,
    startRow: 0,
    endRow: 0,
    totalRows: 1,
    data: [{
      field1: null,
      field2: "value"
    }]
  }
}

Thanks,

Ivan

[iperdomo]

Hi,

A RestDataSource is used just like a normal DataSource. RestDataSources are pre-configured, using the general-purpose databinding facilities of DataSources, to expect a particular format for responses and to send requests in a specific format.

http://www.smartclient.com/smartgwt/javadoc/com/smartgwt/client/data/RestDataSource.html

The default OperationBidings for a DataSource (behaves like a RestDataSource) are not set when building new instance of the class.

I'm using a simple code like this:

  private Panel getPanel(String panelName, String entityName) {
    final Panel panel = new ScrollablePanel(panelName);

    DataSource ds = new DataSource();
    ds.setSendMetaData(true);
    ds.setTitleField("_identifier");
    ds.addField(new DataSourceField("_identifier", "string"));
    ds.setDataURL("./org.openbravo.service.datasource/" + entityName);

    final TableView tv = new TableView();
    tv.setDataSource(ds);
    panel.addMember(tv);

    tv.fetchData();
    return panel;
  }
}

This build of 2012-03-29, introduces a regression, since now the default OperationBinding are not available when creating a DataSource object. Check the constructor of the class:

    public DataSource() {
        attributes.put("dataTagName", "data");
        attributes.put("recordName", "record");
        attributes.put("sendMetaData", Boolean.TRUE);
        attributes.put("metaDataPrefix", "_");
        // What's missing is something like: attributes.put("operationBindings", something);
    }

And now the whole flow of making DataSource requests expect a OperationBinding[], if is not available it fallback to DSDataFormat.ISCSERVER instead of DSDataFormat.JSON

Thanks,

Ivan

[iperdomo]

Hi again,

Also check why the a call to fetchData() makes 2 requests to the server.

Steps to reproduce:
* Visit: http://smartgwt-mobile.smartclient.com/
* Open your favorite network monitor (e.g. Chrome Web Tools - Network tab)
* Go to: Data Binding > Table View
* Check that 2 requests are made to the server (continents)

Cheers,

Ivan

[Isomorphic]

Could you clarify your post #2 above - the DataSource in SmartGWT.mobile uses the RestDataSource protocol by default, and never uses the ISCSERVER protocol. So why would it matter whether it creates OperationBindings by default?

[iperdomo]

Hi,

Regarding post #2.

I updated the smartgwt-mobile.jar to the latest build, then added to the previous code snippet the line:

ds.setSendMetaData(true);

Recompiled and restarted the Dev Mode server, and test it. After the update I was not able to see the request's metadata in the Network Panel of Chrome Web Tools.

Debugging the code, I found that there is no OpenrationBinding[] defined for the DataSource object, therefore the code assumes that there is a ISCSERVER request.

private void sendGWTRequest(DSRequest dsRequest) {
        final OperationBinding opBinding = getOperationBinding(dsRequest);

        final DSDataFormat dataFormat;
        if (opBinding == null) dataFormat = DSDataFormat.ISCSERVER;
        else if (opBinding.getDataFormat() != null) dataFormat = opBinding.getDataFormat();
        else dataFormat = DSDataFormat.ISCSERVER;
        assert dataFormat != null;
// (... rest of the code)
}

You can also see it in the online demo. In my first report (post #1) I was able see the post data sent in the request, now i'm not able.

Hopefully this clarifies the issue.

Thanks,

Ivan

[iperdomo]

Hi,

Friendly bump!

Any news on this? am I doing something wrong?

Thanks,

Ivan

[Isomorphic]

The latest build contains fixes for both issues.

[iperdomo]

Hi again,

Here you have my Environment Details:
* Eclipse 3.7.2
* Google Plugin for Eclipse 2.5.2
* Google Web Toolkit SDK 2.4.0
* Browser: Chromium 18.0.1025.162

The issue related to the 2 requests for triggered by a single fetchData() is still present in SmartGWT.mobile 1.0 (downloaded on 2012-04-19)

Here you have my sample code:

    final Panel panel = new ScrollablePanel(panelName);

    DataSource ds = new DataSource();
    ds.setTitleField("name");
    ds.addField(new DataSourceField("name", "string"));
    ds.setDataURL("products.json");

    final TableView tv = new TableView();
    tv.setDataPageSize(50);
    tv.setDataSource(ds);
    panel.addMember(tv);

    tv.fetchData();

And a sample response from *products.json*

{
  "response": {
    "startRow": 0,
    "endRow": 4,
    "totalRows": 5,
    "data": [{
      "id": "0DC5C5281B3643DEAB978EB04139516B",
      "name": "Orange Juice bio",
    }, {
      "id": "20EA4222B741434A9203471A3B29C343",
      "name": "Vino Blanco 0,75L",
    }, {
      "id": "20FBF069AC804DE9BF16670000B9562E",
      "name": "Cherry Cola",
    }, {
      "id": "2A81EB0F5C4F40F6A6E04A938F8DCFF9",
      "name": "Office Rental",
    }, {
      "id": "34560A057833457D962F7A573F76F5BB",
      "name": "Ale Beer",
    }],
    "status": 0
  }
}

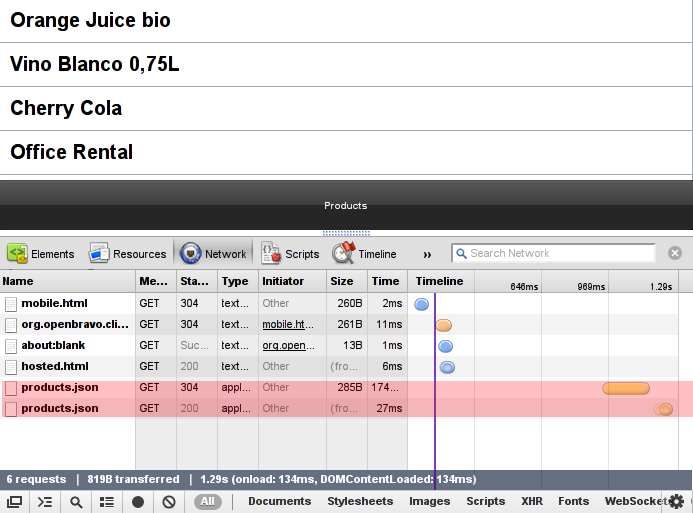

This triggers a double request in the same call. See the attached pic.


Thanks,

Ivan
