field.editorProperties.width(*) ignored in FilterBuilder

[michalg]

Hi,
This is the test case in which FilterBuilder is bounded to the DataSource. DataSource field 'employer' has editorProperties set; among them width is set to fill available space '*':

import com.google.gwt.core.client.EntryPoint;
import com.smartgwt.client.data.DataSource;
import com.smartgwt.client.data.DataSourceField;
import com.smartgwt.client.data.OperationBinding;
import com.smartgwt.client.data.fields.DataSourceTextField;
import com.smartgwt.client.types.AutoFitWidthApproach;
import com.smartgwt.client.types.DSDataFormat;
import com.smartgwt.client.types.DSOperationType;
import com.smartgwt.client.types.DSProtocol;
import com.smartgwt.client.widgets.form.FilterBuilder;
import com.smartgwt.client.widgets.form.fields.ComboBoxItem;
import com.smartgwt.client.widgets.grid.ListGrid;
import com.smartgwt.client.widgets.grid.ListGridField;

public class MainEntryPoint implements EntryPoint {

    public void onModuleLoad() {

        layout();
    }

    private void layout() {

        DataSource employmentDS = new DataSource();
        employmentDS.setID("Employment");
        OperationBinding fetchBinding = new OperationBinding();
        fetchBinding.setOperationType(DSOperationType.FETCH);
        fetchBinding.setDataFormat(DSDataFormat.XML);
        fetchBinding.setDataProtocol(DSProtocol.POSTXML);
        employmentDS.setOperationBindings(fetchBinding);
        employmentDS.setDataURL("Employment.xml");

        DataSource departmentDS = new DataSource();
        departmentDS.setID("Department");
        departmentDS.setOperationBindings(fetchBinding);
        departmentDS.setDataURL("Department.xml");

        DataSourceField idDepField = new DataSourceField();
        idDepField.setName("id");
        idDepField.setPrimaryKey(true);
        idDepField.setHidden(true);
        DataSourceTextField codeField = new DataSourceTextField();
        codeField.setName("code");
        departmentDS.setFields(idDepField, codeField);

        DataSourceField idField = new DataSourceField();
        idField.setName("id");
        idField.setPrimaryKey(true);
        idField.setHidden(true);
        DataSourceField employerField = new DataSourceField();
        employerField.setName("employer");
        employerField.setForeignKey("Department.id");
        employerField.setValueXPath("employer/id");
        ComboBoxItem defaultItem = new ComboBoxItem("employer");
        defaultItem.setOptionDataSource(departmentDS);
        defaultItem.setValueField("id");
        defaultItem.setDisplayField("code");
        defaultItem.setWidth("*");
        defaultItem.setPickListFields(new ListGridField("id", "A very long iddddddddddddddddd title"), new ListGridField("code", "A very longggggggggggggggggggggggggg code title"));
        ListGrid pickListProperties = new ListGrid();
        pickListProperties.setAutoFitFieldWidths(true);
        pickListProperties.setAutoFitWidthApproach(AutoFitWidthApproach.BOTH);
//        pickListProperties.setCanResizeFields(true);
        defaultItem.setPickListProperties(pickListProperties);
        employerField.setEditorProperties(defaultItem);
        DataSourceTextField descriptionField = new DataSourceTextField();
        descriptionField.setName("description");
        employmentDS.setFields(idField, employerField, descriptionField);

        FilterBuilder fb = new FilterBuilder();
        fb.setDataSource(employmentDS);
        fb.setWidth100();
        fb.draw();

    }

}

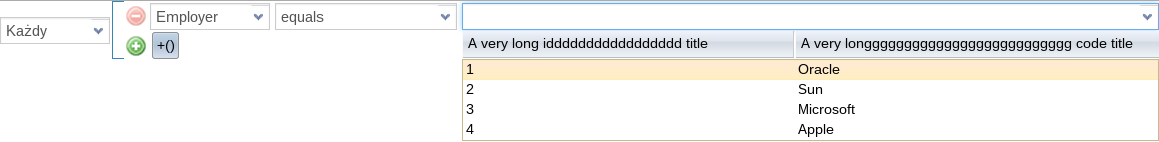

Above code is working fine as shown here: code field (which is first on the list and drawn initially), fills all available width allowing pickList to adjust to the titles width.
Now change the line:

employmentDS.setFields(idField, employerField, descriptionField);

to:

employmentDS.setFields(idField, descriptionField, employerField);

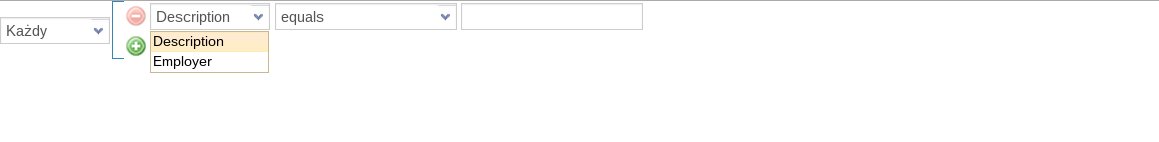

so the description field is initially first and run again.

and choose Employer field:

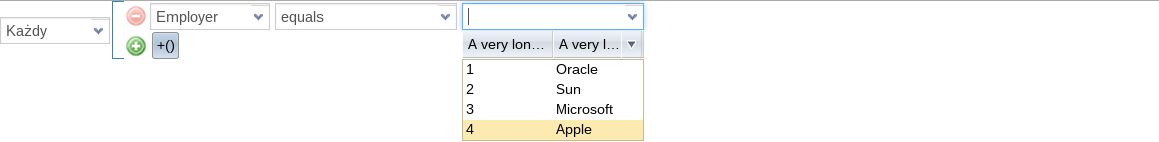

This time width of employer field is not extended to fill form space and pickList is also narrowed and ignoring adjusting to titles.
Thanks,
MichalG
SmartClient Version: v11.0p_2016-07-07/LGPL Development Only (built 2016-07-07)
FF 24.8.0 and Chrominium 38.0.2125.101
Data xml files:
Employment.xml

<response>
    <status>STATUS_SUCCESS</status>
    <startRow>0</startRow>
    <endRow>1</endRow>
    <totalRows>2</totalRows>
    <data>
        <Employment>
            <id>20</id>
            <employer>
                <id>3</id>
                <code>Microsoft</code>
            </employer>
        </Employment>
        <Employment>
            <id>21</id>
            <employer>
                <id>4</id>
                <code>Apple</code>
            </employer>
        </Employment>
    </data>
</response>

Department.xml

<response>
    <status>STATUS_SUCCESS</status>
    <startRow>0</startRow>
    <endRow>4</endRow>
    <totalRows>5</totalRows>
    <data>
        <Department>
            <id>1</id>
            <code>Oracle</code>
            <parentId>
                <id>2</id>
                <code>Sun</code>
            </parentId>
        </Department>
        <Department>
            <id>2</id>
            <code>Sun</code>
            <parentId>
                <id>2</id>
                <code>Sun</code>
            </parentId>
        </Department>
        <Department>
            <id>3</id>
            <code>Microsoft</code>
            <parentId>
                <id>2</id>
                <code>Sun</code>
            </parentId>
        </Department>
        <Department>
            <id>4</id>
            <code>Apple</code>
            <parentId>
                <id>2</id>
                <code>Sun</code>
            </parentId>
        </Department>
    </data>
</response>

[michalg]

Seems to be fixed in SmartClient Version: v11.0p_2016-07-14/LGPL Development Only (built 2016-07-14).
Thank you.
MichalG

[Isomorphic]

Yes, we made a fix to have DSField.editorProperties.width properly enforced over filterBuilder.valueItemWidth.
