    BatchUploader key-lookup for values-to-null lookup does not return null

    Hi Isomorphic,

    I have an issue with BatchUploader with importStrategy="display" where the correct null-value is not set when the look leads to a value being null. Instead the original value is used.
    This issue happens in my application using v10.1p_2016-11-08 as well.

    Please see this BuiltInDS based test case:

    BuiltInDS.html change:
    Code:
    DataSourceLoader?dataSource=employees,employeesUpload,batchUpload
    BuiltInDS.java:
    Code:
    package com.smartgwt.sample.client;

    import com.google.gwt.core.client.EntryPoint;
    import com.smartgwt.client.core.KeyIdentifier;
    import com.smartgwt.client.data.AdvancedCriteria;
    import com.smartgwt.client.data.Criterion;
    import com.smartgwt.client.data.DataSource;
    import com.smartgwt.client.types.OperatorId;
    import com.smartgwt.client.util.Page;
    import com.smartgwt.client.util.PageKeyHandler;
    import com.smartgwt.client.util.SC;
    import com.smartgwt.client.widgets.BatchUploader;
    import com.smartgwt.client.widgets.IButton;
    import com.smartgwt.client.widgets.Window;
    import com.smartgwt.client.widgets.events.ClickEvent;
    import com.smartgwt.client.widgets.events.ClickHandler;
    import com.smartgwt.client.widgets.form.fields.SelectItem;
    import com.smartgwt.client.widgets.grid.ListGrid;
    import com.smartgwt.client.widgets.grid.ListGridField;
    import com.smartgwt.client.widgets.layout.VLayout;

    public class BuiltInDS implements EntryPoint {
        private VLayout mainLayout;
        private IButton recreateBtn;

        public void onModuleLoad() {
            KeyIdentifier debugKey = new KeyIdentifier();
            debugKey.setCtrlKey(true);
            debugKey.setKeyName("D");

            Page.registerKey(debugKey, new PageKeyHandler() {
                public void execute(String keyName) {
                    SC.showConsole();
                }
            });

            mainLayout = new VLayout(20);
            mainLayout.setWidth100();
            mainLayout.setHeight100();

            recreateBtn = new IButton("Recreate");
            recreateBtn.addClickHandler(new ClickHandler() {
                @Override
                public void onClick(ClickEvent event) {
                    recreate();
                }
            });
            mainLayout.addMember(recreateBtn);
            recreate();
            mainLayout.draw();
        }

        private void recreate() {
            Window w = new Window();
            w.setWidth("95%");
            w.setHeight("95%");
            w.setMembersMargin(0);
            w.setModalMaskOpacity(70);
            w.setTitle("BatchUploader key-lookup for values -> null lookup cases");
            w.setShowMinimizeButton(false);
            w.setIsModal(true);
            w.setShowModalMask(true);
            w.centerInPage();

            BatchUploader batchUploader = new BatchUploader();
            {
                batchUploader.setWidth100();
                batchUploader.setUploadDataSource(DataSource.get("employeesUpload"));

                ListGridField nameToManagerIdLGF = new ListGridField("NameToManagerId");
                ListGridField jobLGF = new ListGridField("Job");
                ListGridField employeeManagerLGF = new ListGridField("EmployeeManager");

                SelectItem managerSelect = new SelectItem("EmployeeId");
                managerSelect.setOptionDataSource(DataSource.get("employees"));
                managerSelect.setAllowEmptyValue(true);
                nameToManagerIdLGF.setEditorProperties(managerSelect);

                batchUploader.setGridFields(nameToManagerIdLGF, jobLGF, employeeManagerLGF);
            }

            ListGrid editUsersLG = new ListGrid(DataSource.get("employees"));
            {
                editUsersLG.setAutoFetchData(false);
                editUsersLG.setShowDetailFields(true);
                editUsersLG.setCanEdit(true);
                editUsersLG.setHeight("25%");
                editUsersLG.setShowFilterEditor(true);
                editUsersLG.setAllowFilterExpressions(true);

                ListGridField employeeIdLGF = new ListGridField("EmployeeId");
                ListGridField nameLGF = new ListGridField("Name");
                ListGridField reportsToLGF = new ListGridField("ReportsTo");
                ListGridField jobLGF = new ListGridField("Job");

                editUsersLG.setFields(employeeIdLGF, nameLGF, reportsToLGF, jobLGF);
                editUsersLG.fetchData(new AdvancedCriteria(new Criterion("Name", OperatorId.STARTS_WITH, "Ch")));
            }

            w.addItem(batchUploader);
            w.addItem(editUsersLG);
            w.show();
        }
    }
    employeesUpload.ds.xml:
    Code:
    <DataSource xmlns="lmscompany/ds" ID="employeesUpload" serverType="sql" tableName="employeeTable" recordName="employee" useAnsiJoins="true">
        <fields>
            <field name="Job" title="Title" type="text" length="128">
                <validators>
                    <validator type="serverCustom">
                        <serverObject lookupStyle="new" className="com.smartgwt.sample.server.listener.ValidatorTrue" />
                    </validator>
                </validators>
            </field>

            <field name="NameToManagerId" importStrategy="display" uploadFieldName="Manager" displayField="EmployeeManager" title="Name to Manager" foreignKey="employees.ReportsTo">
                <validators>
                    <validator type="hasRelatedRecord" />
                    <validator type="serverCustom">
                        <serverObject lookupStyle="new" className="com.smartgwt.sample.server.listener.ValidatorTrue" />
                    </validator>
                </validators>
            </field>
            <field name="EmployeeManager" includeFrom="employees.Name" includeVia="NameToManagerId" />
        </fields>
    </DataSource>
    employees.ds.xml:
    Code:
    <DataSource
        ID="employees"
        serverType="sql"
        tableName="employeeTable"
        recordName="employee"
        testFileName="/examples/shared/ds/test_data/employees.data.xml"
        titleField="Name"
        useAnsiJoins="true"
    >
        <fields>
            <field name="userOrder"       title="userOrder"       type="integer"  canEdit="false"    hidden="true"/>
            <field name="Name"            title="Name"            type="text"     length="128"/>
            <field name="EmployeeId"      title="Employee ID"     type="integer"  primaryKey="true"  required="true"/>
            <field name="ReportsTo"       title="Manager"         type="integer"
                   foreignKey="employees.EmployeeId" joinType="outer" />
            <field name="Job"             title="Title"           type="text"     length="128"/>
            <field name="Email"           title="Email"           type="text"     length="128"/>
            <field name="EmployeeType"    title="Employee Type"   type="text"     length="40"/>
            <field name="EmployeeStatus"  title="Status"          type="text"     length="40"/>
            <field name="Salary"          title="Salary"          type="float"/>
            <field name="OrgUnit"         title="Org Unit"        type="text"     length="128"/>
            <field name="Gender"          title="Gender"          type="text"     length="7">
                <valueMap>
                    <value>male</value>
                    <value>female</value>
                </valueMap>
            </field>
            <field name="MaritalStatus"   title="Marital Status"  type="text"     length="10">
                <valueMap>
                    <value>married</value>
                    <value>single</value>
                </valueMap>
            </field>
        </fields>
    </DataSource>
    ValidatorTrue.java:
    Code:
    package com.lmscompany.lms.server.worker.validator;

    import java.util.Map;

    import javax.servlet.http.HttpServletRequest;

    import com.isomorphic.datasource.DataSource;
    import com.isomorphic.datasource.Validator;

    public class ValidatorTrue {

        public boolean condition(Object value, Validator validator, String fieldName, @SuppressWarnings("rawtypes") Map record, DataSource ds,
                HttpServletRequest httpServletRequest) throws Exception {
            return true;
        }
    }
    TestdataImportEmployees.csv.txt:
    Code:
    Manager,Job
    Charles Madigen,foo
    Tamara Kane,bar


    Steps to reproduce:
    1. Start sample
    2. Edit "Charles Madigan" in lower ListGrid to have no Manager (set reportsTo to null)

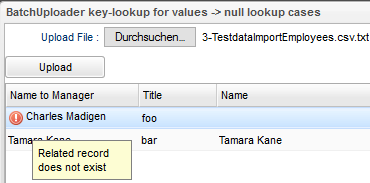

    3. Upload the file, see this: Click image for larger version

Name:	Unbenannt.PNG
Views:	51
Size:	8.3 KB
ID:	241389
    This is not expected, but logical, as the return of the Upload request is:
    Code:
    {
        affectedRows:0,
        data:{
            discardedColumns:[
            ],
            gridRows:[
                {
                    Job:"foo",
    [B]               NameToManagerId:"Charles Madigen"[/B]
                },
                {
                    EmployeeManager:"Tamara Kane",
                    Job:"bar",
                    NameToManagerId:"4"
                }
            ],
            errors:[
                {
                    errors:{
                        NameToManagerId:[
                            "Related record does not exist"
                        ]
                    },
                    rowNum:0
                }
            ]
        },
        invalidateCache:false,
        isDSResponse:true,
        operationType:"add",
        queueStatus:0,
        status:0
    }
    In the server log you can see this expected line:
    Code:
    === 2016-11-16 19:40:37,452 [9-36] INFO  SQLDriver - [builtinApplication.null] Executing SQL query on 'HSQLDB' using connection '2099790644': SELECT employeeTable.userOrder, employeeTable.Name, employeeTable.EmployeeId, employeeTable.ReportsTo, employeeTable.Job, employeeTable.Email, employeeTable.EmployeeType, employeeTable.EmployeeStatus, employeeTable.Salary, employeeTable.OrgUnit, employeeTable.Gender, employeeTable.MaritalStatus FROM employeeTable WHERE (LOWER(employeeTable.Name)='charles madigen')
    [B]=== 2016-11-16 19:40:37,454 [9-36] INFO  DSResponse - DSResponse: List with 1 items[/B]
    In this case, where the lookup leads to a null value (as opposed to: No row was found for the given value), I 'd expect this as result:
    Code:
            gridRows:[
                {
    [B]               EmployeeManager:"Charles Madigen", [/B]
                    Job:"foo",
    [B]               NameToManagerId: null       (or this row missing)[/B]
                },
                {
                    EmployeeManager:"Tamara Kane",
                    Job:"bar",
                    NameToManagerId:"4"
                }
            ],

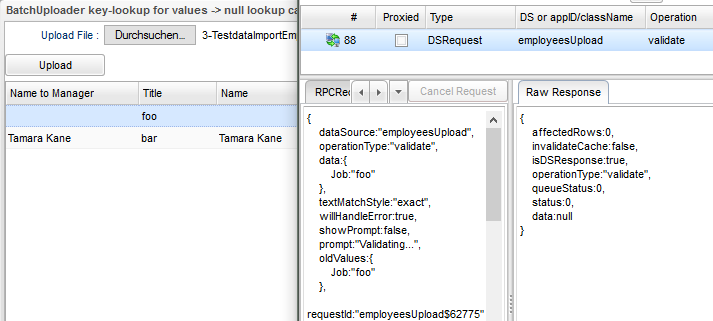

    The hasRelatedRecord-validator would not be executed for the "Charles Madigan" row, just like the validation passes, when you change the value to null via the ListGrid editing: Click image for larger version

Name:	ValidationOK.PNG
Views:	57
Size:	25.4 KB
ID:	241390



    This is an important one for me.

    Best regards
    Blama

    #2
    This is fixed and will be available for download in nightly builds since Nov 23 (tomorrow). Let us know please how this worked for you.

    Comment


      #3
      Hi Isomorphic,

      this is fixed for me using v10.1p_2016-11-25 in both the sample and my application.

      Thank you
      Blama
