exportClientData and Hilite result in <span> markup in exported XLSX file

[Blama]

Hi Isomorphic,

please see this testcase (created using SNAPSHOT_v11.1d_2017-04-13, but happens also in my application using latest 5.1p).

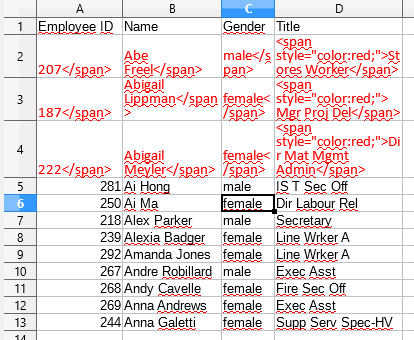

When you open the exported XLSX (I used LibreOffice 5.3.2) you'll see that the cells contain <span>-markup.
(For a test, I also changed the job-field to escapeHTML="true" in employees.ds.xml, but this did not change anything, either.)

package com.smartgwt.sample.client;

import com.google.gwt.core.client.EntryPoint;
import com.smartgwt.client.Version;
import com.smartgwt.client.core.KeyIdentifier;
import com.smartgwt.client.data.AdvancedCriteria;
import com.smartgwt.client.data.Criterion;
import com.smartgwt.client.data.DSRequest;
import com.smartgwt.client.data.DataSource;
import com.smartgwt.client.data.Hilite;
import com.smartgwt.client.data.SortSpecifier;
import com.smartgwt.client.types.ExportFormat;
import com.smartgwt.client.types.OperatorId;
import com.smartgwt.client.types.SortDirection;
import com.smartgwt.client.util.Page;
import com.smartgwt.client.util.PageKeyHandler;
import com.smartgwt.client.util.SC;
import com.smartgwt.client.widgets.IButton;
import com.smartgwt.client.widgets.Window;
import com.smartgwt.client.widgets.events.ClickEvent;
import com.smartgwt.client.widgets.events.ClickHandler;
import com.smartgwt.client.widgets.form.fields.ComboBoxItem;
import com.smartgwt.client.widgets.grid.ListGrid;
import com.smartgwt.client.widgets.grid.ListGridField;
import com.smartgwt.client.widgets.layout.VLayout;

public class BuiltInDS implements EntryPoint {
    private VLayout mainLayout;
    private IButton recreateBtn;

    public void onModuleLoad() {
        KeyIdentifier debugKey = new KeyIdentifier();
        debugKey.setCtrlKey(true);
        debugKey.setKeyName("D");

        Page.registerKey(debugKey, new PageKeyHandler() {
            public void execute(String keyName) {
                SC.showConsole();
            }
        });

        mainLayout = new VLayout(20);
        mainLayout.setWidth100();
        mainLayout.setHeight100();

        recreateBtn = new IButton("Recreate");
        recreateBtn.addClickHandler(new ClickHandler() {
            @Override
            public void onClick(ClickEvent event) {
                recreate();
            }
        });
        mainLayout.addMember(recreateBtn);
        recreate();
        mainLayout.draw();
    }

    private void recreate() {
        Window w = new Window();
        w.setWidth("95%");
        w.setHeight("95%");
        w.setMembersMargin(0);
        w.setModalMaskOpacity(70);
        w.setTitle(" (" + Version.getVersion() + "/" + Version.getSCVersionNumber() + ")");
        w.setTitle("Export has visible tags in data when using Hiliting" + w.getTitle());
        w.setShowMinimizeButton(false);
        w.setIsModal(true);
        w.setShowModalMask(true);
        w.centerInPage();

        final ListGrid employeesGrid = new ListGrid();

        employeesGrid.setHeight100();
        employeesGrid.setAutoFetchData(false);
        employeesGrid.setCanEdit(true);
        employeesGrid.setDataSource(DataSource.get("employees"));

        ListGridField employeeId = new ListGridField("EmployeeId");

        ListGridField name = new ListGridField("Name");

        ListGridField gender = new ListGridField("Gender");

        ListGridField reportsTo = new ListGridFieldReportsTo("ReportsTo");

        ListGridField job = new ListGridField("Job");

        employeesGrid.setFields(employeeId, name, gender, reportsTo, job);
        employeesGrid.setSort(new SortSpecifier[] { new SortSpecifier(name.getName(), SortDirection.ASCENDING) });

        Hilite redHitlite = new Hilite() {
            {
                setTextColor("red");
                setCriteria(new AdvancedCriteria(new Criterion("Name", OperatorId.STARTS_WITH, "Ab")));
            }
        };
        employeesGrid.setHilites(new Hilite[] { redHitlite });

        w.addItem(employeesGrid);

        IButton expButton = new IButton("Export", new ClickHandler() {
            @Override
            public void onClick(ClickEvent event) {
                DSRequest exportRequest = new DSRequest();
                exportRequest.setExportAs(ExportFormat.OOXML);
                employeesGrid.exportClientData(exportRequest);
            }
        });
        w.addItem(expButton);
        employeesGrid.fetchData(new AdvancedCriteria(new Criterion(name.getName(), OperatorId.STARTS_WITH, "A")));
        w.show();
    }

    private class ListGridFieldReportsTo extends ListGridField {
        public ListGridFieldReportsTo(String name) {
            super(name);
            ComboBoxItem managerCBI = new ComboBoxItem();
            managerCBI.setOptionDataSource(DataSource.get("employees"));
            managerCBI.setValueField(DataSource.get("employees").getPrimaryKeyFieldName());
            managerCBI.setDisplayField("Name");
            managerCBI.setPickListSort(new SortSpecifier[] { new SortSpecifier("EmployeeId", SortDirection.ASCENDING),
                    new SortSpecifier("Name", SortDirection.ASCENDING) });
            ListGridField managerCBI_empIdLGF = new ListGridField("EmployeeId");
            ListGridField managerCBI_nameLGF = new ListGridField("Name");
            managerCBI.setPickListFields(managerCBI_empIdLGF, managerCBI_nameLGF);
            managerCBI.setPickListHeaderHeight(0);
            setEditorProperties(managerCBI);
        }
    }
}

Best regards
Blama

[Isomorphic]

This is fixed and will be available for download in nightly builds since Apr 18 (tomorrow). Thanks for the report.

[Blama]

Hi Isomorphic,

using SNAPSHOT_v11.1d_2017-04-18 this is fixed for me in the testcase above. It is not fixed if you set escapeHTML="true" for the type="text"-fields in the employees.ds.xml.

Best regards
Blama

[Isomorphic]

This is fixed and will be available for download in nightly builds since Apr 30 (tomorrow). Thanks for the report.

[Blama]

Hi Isomorphic,

this one now has been working for me for a long time.

Thank you & Best regards
Blama
