Problem with missing filter text after filtering field with displayField and setFilterOperator

[Blama]

Hi Isomorphic,

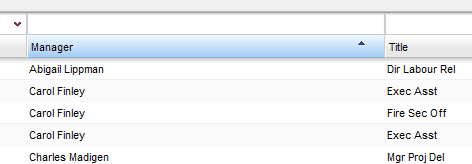

please see this testcase (v11.1p_2017-09-11). It seems that for fields with displayField and the filter string is not displayed after filtering, even though the does filter.
Also, the request after a invalidateCache() does include the expected criteria (see the "Reload" button).
The issue seems to be related to the line reportsTo.setFilterOperator(OperatorId.ICONTAINS) in the code.



BuiltInDS.java:

package com.smartgwt.sample.client;

import com.google.gwt.core.client.EntryPoint;
import com.smartgwt.client.Version;
import com.smartgwt.client.core.KeyIdentifier;
import com.smartgwt.client.data.AdvancedCriteria;
import com.smartgwt.client.data.Criterion;
import com.smartgwt.client.data.DataSource;
import com.smartgwt.client.data.SortSpecifier;
import com.smartgwt.client.types.OperatorId;
import com.smartgwt.client.types.SortDirection;
import com.smartgwt.client.util.Page;
import com.smartgwt.client.util.PageKeyHandler;
import com.smartgwt.client.util.SC;
import com.smartgwt.client.widgets.IButton;
import com.smartgwt.client.widgets.Window;
import com.smartgwt.client.widgets.events.ClickEvent;
import com.smartgwt.client.widgets.events.ClickHandler;
import com.smartgwt.client.widgets.form.fields.TextItem;
import com.smartgwt.client.widgets.grid.ListGrid;
import com.smartgwt.client.widgets.grid.ListGridField;
import com.smartgwt.client.widgets.layout.VLayout;

public class BuiltInDS implements EntryPoint {
    private VLayout mainLayout;
    private IButton recreateBtn;

    public void onModuleLoad() {
        KeyIdentifier debugKey = new KeyIdentifier();
        debugKey.setCtrlKey(true);
        debugKey.setKeyName("D");

        Page.registerKey(debugKey, new PageKeyHandler() {
            public void execute(String keyName) {
                SC.showConsole();
            }
        });

        mainLayout = new VLayout(20);
        mainLayout.setWidth100();
        mainLayout.setHeight100();

        recreateBtn = new IButton("Recreate");
        recreateBtn.addClickHandler(new ClickHandler() {
            @Override
            public void onClick(ClickEvent event) {
                recreate();
            }
        });
        mainLayout.addMember(recreateBtn);
        recreate();
        mainLayout.draw();
    }

    private void recreate() {
        Window w = new Window();
        w.setWidth("95%");
        w.setHeight("95%");
        w.setMembersMargin(0);
        w.setModalMaskOpacity(70);
        w.setTitle(" (" + Version.getVersion() + "/" + Version.getSCVersionNumber() + ")");
        w.setTitle("ListGrid has problem with filtering for fields with displayField" + w.getTitle());
        w.setShowMinimizeButton(false);
        w.setIsModal(true);
        w.setShowModalMask(true);
        w.centerInPage();

        final ListGrid employeesGrid = new ListGrid();
        employeesGrid.setHeight100();
        employeesGrid.setAutoFetchData(false);
        employeesGrid.setDataSource(DataSource.get("employees"));
        employeesGrid.setShowFilterEditor(true);

        ListGridField employeeId = new ListGridField("EmployeeId");
        employeeId.setCanEdit(false);

        ListGridField name = new ListGridField("Name");
        name.setCanEdit(false);

        ListGridField gender = new ListGridField("Gender");

        ListGridField reportsTo = new ListGridField("ReportsTo");
[B]        // Without, it is displaying, but using equals criteria
        reportsTo.setFilterOperator(OperatorId.ICONTAINS);[/B]
        reportsTo.setFilterEditorProperties(new TextItem());

        ListGridField job = new ListGridField("Job");

        employeesGrid.setFields(employeeId, name, gender, reportsTo, job);
        employeesGrid.setSort(new SortSpecifier[] { new SortSpecifier(reportsTo.getName(), SortDirection.ASCENDING) });
        employeesGrid.fetchData(new AdvancedCriteria(new Criterion(name.getName(), OperatorId.STARTS_WITH, "A")));
        w.addItem(employeesGrid);

        IButton reloadBtn = new IButton("Reload", new ClickHandler() {
            @Override
            public void onClick(ClickEvent event) {
                employeesGrid.invalidateCache();
            }
        });
        w.addItem(reloadBtn);
        w.show();
    }
}

employees.ds.xml:

<DataSource
    ID="employees"
    serverType="sql"
    tableName="employeeTable"
    recordName="employee"
    testFileName="/examples/shared/ds/test_data/employees.data.xml"
    titleField="Name" useAnsiJoins="true">
    <fields>
        <field name="userOrder"       title="userOrder"       type="integer"  canEdit="false"    hidden="true"/>
        <field name="Name"            title="Name"            type="text"     length="128"/>
        <field name="EmployeeId"      title="Employee ID"     type="integer"  primaryKey="true"  required="true"/>
        <field name="ReportsTo"       title="Manager"         type="integer"  required="true"
               foreignKey="employees.EmployeeId"  rootValue="1" displayField="ReportsToName" />
        <field name="ReportsToName"   includeFrom="employees.Name" title="Manager name" />
        <field name="Job"             title="Title"           type="text"     length="128"/>
        <field name="Email"           title="Email"           type="text"     length="128"/>
        <field name="EmployeeType"    title="Employee Type"   type="text"     length="40"/>
        <field name="EmployeeStatus"  title="Status"          type="text"     length="40"/>
        <field name="Salary"          title="Salary"          type="float"/>
        <field name="OrgUnit"         title="Org Unit"        type="text"     length="128"/>
        <field name="Gender"          title="Gender"          type="text"     length="7">
            <valueMap>
                <value>male</value>
                <value>female</value>
            </valueMap>
        </field>
        <field name="MaritalStatus"   title="Marital Status"  type="text"     length="10">
            <valueMap>
                <value>married</value>
                <value>single</value>
            </valueMap>
        </field>
    </fields>
</DataSource>

Best regards
Blama

[Isomorphic]

The underlying field is a number, and an FK, so equals is the default operator - when you force iContains, the return criteria is being considered non-editable after the round-trip, because number fields don't support iContains.

We'll take a look and get back to you.

[Isomorphic]

This has been fixed for builds dated September 19 and later - whether an operator is considered valid (and criteria can be edited after a round-trip) is now based on the criteriaField, which is what you're entering filter values for, rather than the actual field.

[Blama]

Hi Isomorphic,

I can see that it is fixed using v11.1p_2017-09-20.

Please note that the operators offered on right click when using filterOperators also seem to differ depending on the field-type, not the criteriaField-type, as I'd expect.

Best regards
Blama

[Isomorphic]

This issue has also been addressed, for builds dated September 22 and later.

[Blama]

Hi Isomorphic,

I can confirm it's fixed for me using v11.1p_2017-10-05.

Best regards
Blama
