  • Close tab icon in vertical tabset seems wrongly positioned

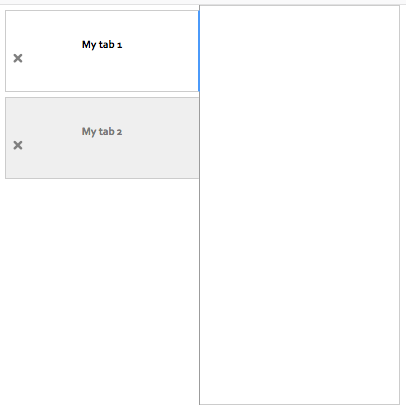

    As shown in the attached image, the default close tab icon seems incorrectly placed.

    Click image for larger version

Name:	tabset.png
Views:	1
Size:	4.3 KB
ID:	255256

    The code is lifted off the showcase:

    Code:
            final TabSet leftTabSet = new TabSet();
            leftTabSet.setTabBarPosition(Side.LEFT);
            leftTabSet.setWidth(400);
            leftTabSet.setHeight(400);
            leftTabSet.setTabBarThickness(200);
            leftTabSet.setCanCloseTabs(true);

            Tab lTab1 = new Tab("My tab 1");
            lTab1.setPane(new HLayout());

            Tab lTab2 = new Tab("My tab 2");
            lTab2.setPane(new HLayout());

            leftTabSet.addTab(lTab1);
            leftTabSet.addTab(lTab2);

            VStack vStack = new VStack(10);
            vStack.addMember(leftTabSet);
            vStack.draw();
    This is tested on Firefox 62.0.2 (64-bit) on MacOSX and SmartGWT v12.0p_2018-09-26 using the Stratus theme.

    On a related note is there a way to control the height of the individual tabs? Thanks.

  • #2
    Hello, any updates on this? I have been trying to fix it with CSS but not having much luck, it looks like the close button is placed inside its own <td> with the class tabButtonLeftSelected (like the tabs) making it hard to isolate in CSS.

    Any tips much appreciated.

    Comment


    • #3
      It's queued to be looked at - if you need faster response times, consider purchasing support.

      Initial tests show that the closeIcon is indeed rendered in it's own <td> and is wrapping to the next line - we'll let you know when we've looked into it and have more information.

      As for tab-heights, you can set height directly on your tabs, but you would also need to set overflow: "hidden" on them to prevent auto-sizing - after that, you might also want to look into tabBarThickness to ensure tab-content is visible.

      Comment


      • #4
        We've made some changes here - you should find the closeIcon behaving as you expect in builds dated October 5 and later.

        You should also find that just setting an arbitrary height on a tab will now work as you expect in "left" and "right" tabOrientations, without specifying overflow.

        Comment


        • #5
          Perfect it is fixed - thanks :)
