ExportFormat.OOXML

[pavo123]

Hi Isomorphic,

please take a look at this test case (v12.0p_2019-10-06/PowerEdition Deployment (built 2019-10-06)).

package com.smartgwt.sample.client;

import com.google.gwt.core.client.EntryPoint;
import com.smartgwt.client.Version;
import com.smartgwt.client.core.KeyIdentifier;
import com.smartgwt.client.data.DSRequest;
import com.smartgwt.client.types.ExportFormat;
import com.smartgwt.client.util.Page;
import com.smartgwt.client.util.PageKeyHandler;
import com.smartgwt.client.util.SC;
import com.smartgwt.client.widgets.Button;
import com.smartgwt.client.widgets.IButton;
import com.smartgwt.client.widgets.Window;
import com.smartgwt.client.widgets.events.ClickEvent;
import com.smartgwt.client.widgets.events.ClickHandler;
import com.smartgwt.client.widgets.grid.HeaderSpan;
import com.smartgwt.client.widgets.grid.ListGrid;
import com.smartgwt.client.widgets.grid.ListGridField;
import com.smartgwt.client.widgets.layout.VLayout;

public class BuiltInDS extends VLayout implements EntryPoint {
    private IButton recreateBtn;

    public void onModuleLoad() {
        KeyIdentifier debugKey = new KeyIdentifier();
        debugKey.setCtrlKey(true);
        debugKey.setKeyName("D");

        Page.registerKey(debugKey, new PageKeyHandler() {
            public void execute(String keyName) {
                SC.showConsole();
            }
        });

        setWidth100();
        setHeight100();

        recreateBtn = new IButton("Recreate");
        recreateBtn.addClickHandler(new ClickHandler() {
            @Override
            public void onClick(ClickEvent event) {
                new MyWindow().show();
            }
        });
        addMember(recreateBtn);
        new MyWindow().show();
        draw();
    }

    private class MyWindow extends Window {
        public MyWindow() {
            setWidth(400);
            setHeight(300);
            setMembersMargin(0);
            setModalMaskOpacity(70);
            setTitle(" (" + Version.getVersion() + "/" + Version.getSCVersionNumber() + ")");
            setShowMinimizeButton(false);
            setIsModal(true);
            setShowModalMask(true);
            centerInPage();

            final ListGrid exportGrid = new ListGrid();
            exportGrid.setDataSource("animals");

            ListGridField commonNameLGF = new ListGridField("commonName");
            ListGridField scientificNameLGF = new ListGridField("scientificName");
            ListGridField lifeSpanLGF = new ListGridField("lifeSpan");
            ListGridField statusLGF = new ListGridField("status");

            HeaderSpan headerSpan = new HeaderSpan("HeaderSpan", new String[] { "scientificName", "status" });
            exportGrid.setHeaderSpans(headerSpan);

            exportGrid.setFields(commonNameLGF, scientificNameLGF, lifeSpanLGF, statusLGF);
            exportGrid.fetchData();

            Button exportButton = new Button("Export_data");
            exportButton.addClickHandler(new ClickHandler() {
                @Override
                public void onClick(ClickEvent event) {

                    final DSRequest exportRequest = new DSRequest() {
                        {
                            setExportAs(ExportFormat.OOXML);
                        }
                    };
                    exportGrid.exportData(exportRequest);
                }
            });

            addMember(exportGrid);
            addMember(exportButton);
        }
    }
}

When I export the data, I get an error

=== 2019-10-07 16:47:24,079 [8-32] DEBUG ExcelDataExport - Export streaming mode: true
java.lang.IllegalStateException: Cannot add merged region B1:B2 to sheet because it overlaps with an existing merged region (B1:C1).
    at org.apache.poi.xssf.usermodel.XSSFSheet.validateMergedRegions(XSSFSheet.java:480)
    at org.apache.poi.xssf.usermodel.XSSFSheet.addMergedRegion(XSSFSheet.java:413)
    at org.apache.poi.xssf.usermodel.XSSFSheet.addMergedRegion(XSSFSheet.java:367)
    at org.apache.poi.xssf.streaming.SXSSFSheet.addMergedRegion(SXSSFSheet.java:394)
    at com.isomorphic.rpc.ExcelDataExport.outputHeaderSpans(ExcelDataExport.java:1417)
    at com.isomorphic.rpc.ExcelDataExport.outputHeaders(ExcelDataExport.java:1082)
    at com.isomorphic.rpc.ExcelDataExport.getExportObject(ExcelDataExport.java:483)
    at com.isomorphic.rpc.DataExport.exportResultSet(DataExport.java:646)
    at com.isomorphic.rpc.DataExport.exportResultSet(DataExport.java:452)
    at com.isomorphic.rpc.RPCManager.completeResponse(RPCManager.java:1290)
    at com.isomorphic.rpc.RPCManager.send(RPCManager.java:723)
    at com.isomorphic.servlet.IDACall.processRPCTransaction(IDACall.java:183)
    at com.isomorphic.servlet.IDACall.processRequest(IDACall.java:148)
    at com.isomorphic.servlet.IDACall._processRequest(IDACall.java:119)
    at com.isomorphic.servlet.IDACall.doPost(IDACall.java:79)
    at javax.servlet.http.HttpServlet.service(HttpServlet.java:755)
    at com.isomorphic.servlet.BaseServlet.service(BaseServlet.java:176)
    at javax.servlet.http.HttpServlet.service(HttpServlet.java:848)
    at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:686)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1494)
    at com.isomorphic.servlet.CompressionFilter._doFilter(CompressionFilter.java:260)
    at com.isomorphic.servlet.BaseFilter.doFilter(BaseFilter.java:93)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1474)
    at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:499)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:137)
    at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:557)
    at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:231)
    at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1086)
    at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:428)
    at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:193)
    at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1020)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:135)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:116)
    at org.eclipse.jetty.server.handler.RequestLogHandler.handle(RequestLogHandler.java:68)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:116)
    at org.eclipse.jetty.server.Server.handle(Server.java:370)
    at org.eclipse.jetty.server.AbstractHttpConnection.handleRequest(AbstractHttpConnection.java:489)
    at org.eclipse.jetty.server.AbstractHttpConnection.content(AbstractHttpConnection.java:960)
    at org.eclipse.jetty.server.AbstractHttpConnection$RequestHandler.content(AbstractHttpConnection.java:1021)
    at org.eclipse.jetty.http.HttpParser.parseNext(HttpParser.java:865)
    at org.eclipse.jetty.http.HttpParser.parseAvailable(HttpParser.java:240)
    at org.eclipse.jetty.server.AsyncHttpConnection.handle(AsyncHttpConnection.java:82)
    at org.eclipse.jetty.io.nio.SelectChannelEndPoint.handle(SelectChannelEndPoint.java:668)
    at org.eclipse.jetty.io.nio.SelectChannelEndPoint$1.run(SelectChannelEndPoint.java:52)
    at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:608)
    at org.eclipse.jetty.util.thread.QueuedThreadPool$3.run(QueuedThreadPool.java:543)
    at java.lang.Thread.run(Unknown Source)

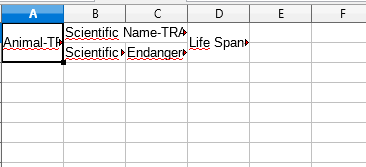

Exported file is broken:


Bug or not?

Best regards
Pavo

[Isomorphic]

This was a bug, which is fixed now and available for download in nightly builds since Oct 10 (today).

[pavo123]

Hi Isomorphic,

I can confirm that it has beed fixed in my case as well, thank you!

Best regards
Pavo
