Customize CheckBoxTrue/CheckBox False image for a paticular listGrid Field of ListGrid

[preeti_kanyal]

Hi,

I am using SmartGWT version -->12.1-p20200423

I am using ListGrid, by setting setSelectionAppearance(SelectionAppearance.CHECKBOX); i get checkbox in first Column.
I am having a listGrid field whose dataSource is set to chckBox/boolean ,so i get the checkbox in that ListGrid Field ,but my requirement is to have different image for CheckBoxTrue/checkBoxFalse for this field only plus this field is editabltable too.

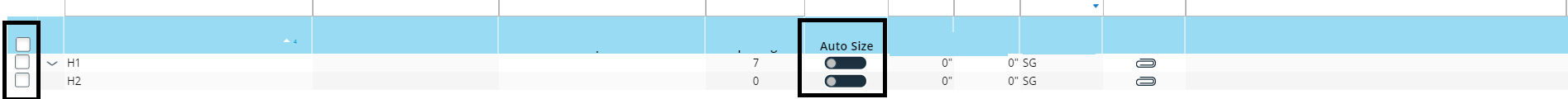

I have attached a mockup for my requirement

How can i achieve it.

[Isomorphic]

See docs for listGridField.valueIcons.

[preeti_kanyal]

Thanks for your reply.I have tried with foloowing code:

final Map<String, String> valueIcons = new HashMap<>();
valueIcons.put(Constants.FALSE_STRING, ComponentIcons.SLIDER_OFF);
valueIcons.put(Constants.TRUE_STRING, ComponentIcons.SLIDER_ON);
autosizeField.setValueIcons(valueIcons);
autosizeField.setShowValueIconOnly(true);
autosizeField.setCanFilter(false);
autosizeField.setValueIconWidth(65);
autosizeField.setValueIconHeight(18);
autosizeField.setWidth(100);
autosizeField.setCanEdit(true);
autosizeField.setCanToggle(true);

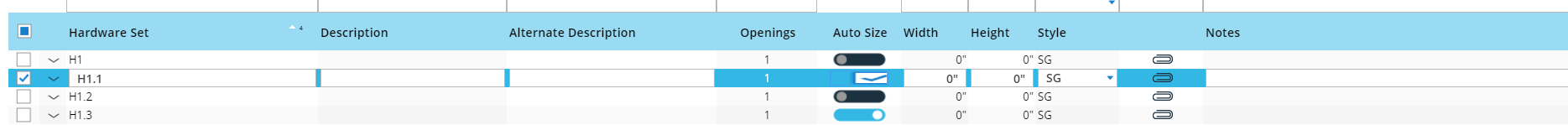

By default it is showing my new icons but when i click on icon , it shows smartGWT default checkBox images.

Please help.

[Isomorphic]

Do you mean when editing? You would also need to configure the editor uses for the cell (CheckboxItem by default).
