ListGrid selectionAppearance and autoFitFieldWidths

[michalg]

Hi,
This is slightly modified showcase example https://www.smartclient.com/smartcli...checkboxSelect

isc.ListGrid.create({
    ID: "countryList",
    width:800, height:224, alternateRecordStyles:true,
    data: countryData,
    selectionAppearance:"rowStyle",
    fields:[
        {name:"countryCode", title:"Flag", width:30, type:"image", imageURLPrefix:"flags/16/", imageURLSuffix:".png"},
        {name:"countryName", title:"Country"},
        {name:"capital", title:"Capital"},
        {name:"continent", title:"Continent"}
    ],
    selectionUpdated: "selectedCountries.setData(this.getSelection())",
    autoFitFieldWidths: true
})

isc.IButton.create({
    left:0, top:240,
    title:"Checkbox on",
    click:"countryList.setSelectionAppearance('checkbox');"
})

isc.IButton.create({
    left:130, top:240,
    title:"Checkbox off",
    click:"countryList.setSelectionAppearance('rowStyle');"
})

Grid without checkbox select looks like:

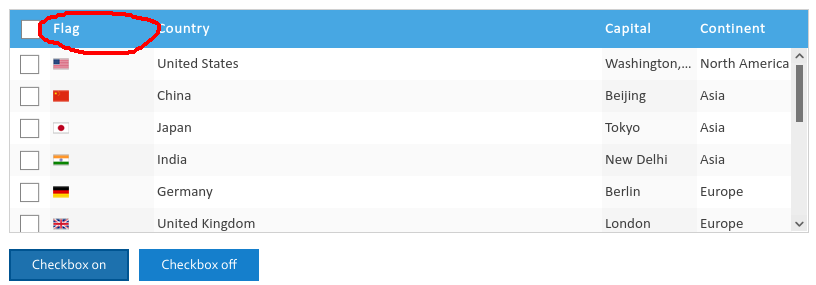

Press Checkbox on button and Grid with checkbox select looks like:

You can see that code (Flag) column is now inexplicably wide.
We have above problem in our application and noticed that it is related to the ListGrid.autoFitFieldWidths=true feature.
Thanks,
MichalG

[michalg]

Any comments will be appreciated.
Thanks,
MichalG

[Isomorphic]

We see the issue and it's assigned to be fixed - we'll update here shortly.

[Isomorphic]

This one's been fixed - please retest with a build dated February 17 or later.

[Isomorphic]

Note that yesterday's change to address this issue was backed out because it resulted in a subtle behavior-change that tripped our autotest system . We're taking another look.

[michalg]

Will you update this topic when fixed?
Thank you,
MichalG

[Isomorphic]

Yes, of course - we've been very busy lately, so forgive the delay - we'll get back to this one shortly and update here when a fix hits builds.

[michalg]

This is still an open issue. Not very important but burdensome on mobile devices with little horizontal space.
Thanks,
MichalG

[Isomorphic]

Hi Michael
Thanks for the bump.
We've made a change to address this issue. Please try the next nightly build dated Nov 17 or above (12.1 or 13.0 branches)

Regards
Isomorphic Software

[michalg]

Seems to me that this issue has been resolved in v13.0d_2021-11-17.
Thanks a lot,
MichalG
