blank space in DynamicForm

[kostasritsos]

In my project I have the following issue:As you can see I have 2 dynamicForms that add some TextItems attributes.The second form has one more attribute in the beginning of the program but I want the rest host,port,key to be in the same line for both forms,something that can not be done due to that extra item.How can I create a space or adjust the forms so the host,port,key be in the same line horizontally

        setWidth100();
        setHeight100();
        HLayout mainHLayout = new HLayout();
        mainHLayout.setMargin(2);
        mainHLayout.setWidth(700);
        mainHLayout.setHeight(200);
        final DynamicForm firstForm = new DynamicForm();
        firstForm.setNumCols(2);
        firstForm.setIsGroup(true);
        firstForm.setMargin(10);
        firstForm.setWrapItemTitles(false);
        firstForm.setItems( hostItem, portItem,KeyItem);
        mainHLayout.addMember(firstForm);

        final DynamicForm secondForm = new DynamicForm();
        secondForm.setNumCols(2);
        secondForm.setIsGroup(true);
        secondForm.setMargin(10);
        secondForm.setWrapItemTitles(false)
        secondForm.setItems(extraItem, hostItem2, portItem2,KeyItem2);

        mainHLayout.addMember(secondForm);

[Isomorphic]

We would need to see the rest of the code, and probably a screenshot, in order to really comment, but the obvious this is that you've got numCols:2 and 3 items and then 4. Even if you've set showTitle:false on those items, you need at least as many columns as you have items. If they have titles, you need double the number of columns.

See the Form Layout overview for more information.

[kostasritsos]

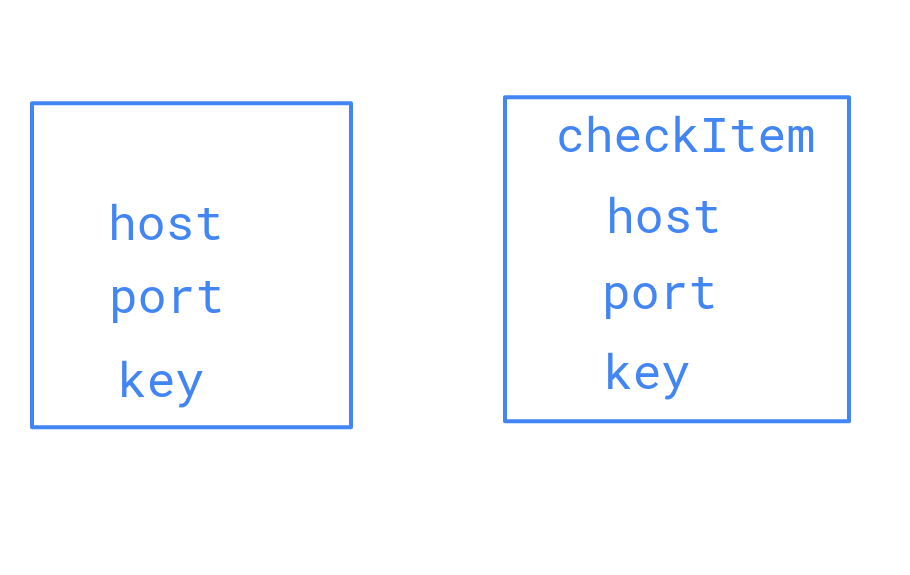

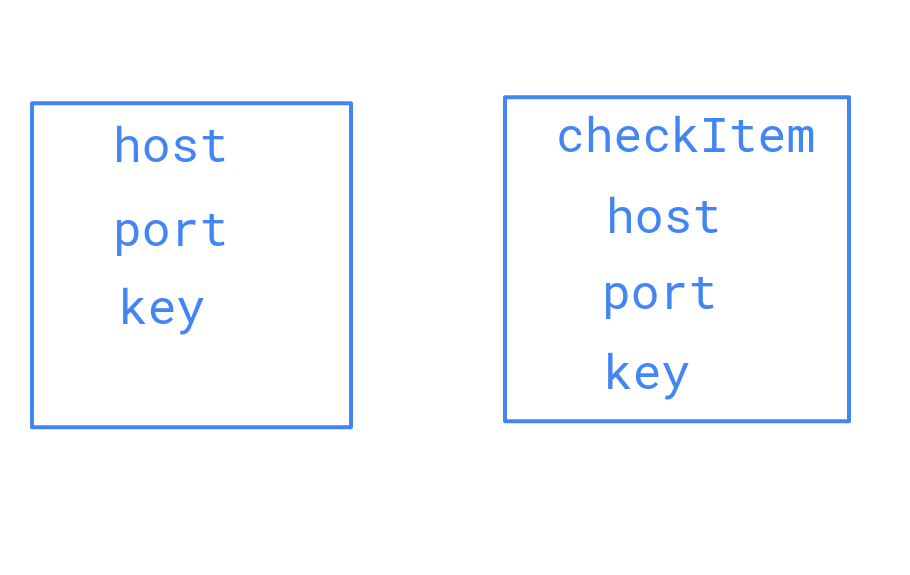

The first image is how the two forms seem in the window,while i want to achieve this view:

[Blama]

Hi kostasritsos,

try a SpacerItem as 1st item in firstForm.

Best regards
Blama

[kostasritsos]

Hi kostasritsos,

try a SpacerItem as 1st item in firstForm.

Best regards
Blama

Thank you!
