ListGrid filter icon change

[MageshkumarM]

Hello,

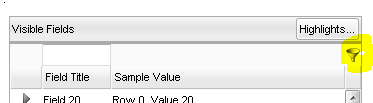

I have a quick question, In smartgwt have any option to change custom icon on filter row in a ListGrid Component. For reference please find the image.

[MageshkumarM]

Change filter the image

Any idea how to do it?

[Blama]

Hi MageshkumarM,

I don't know that, but I can tell what I would do in that case:

1. Search JavaDocs for a matching method
2. Search JavaDocs for possible autochild
3. If both not found: Get icon URL in showcase (Enterprise skin)
4. Get icon URL in showcase (Simplicity skin)
5. If different paths after the skin-name, check the skin's load_skin.js and skin_styles.css and adjust.
6. If not found play with load_skin.js in the "if (isc.ListGrid)"-part with some educated guesses for the property name.
7. If that does not work either, just replace the icon file.

@Isomorphic:
Out of curiosity, regarding 6):
In the load_skin.js, there is "isc.ListGrid.changeDefaults": Where are these defaults set? I'm asking, because with that information one could know the name of the property to change. I searched my project for it and found this file: war\proj\sc\system\schema\ListGrid.ds.xml, but that does not seem to be the one. But I'm pretty sure it has to be in one of the js files (being most likely SmartClient related), but not a generated *.cache.js.

Best regards,
Blama

[Isomorphic]

We don't really follow the question.. you seem to be asking where the defaults for component properties are set up, which is done where the components are defined as JavaScript classes, in ISC_Core.js et al (the SmartClient runtime).

[Blama]

Hi Isomorphic,

exactly. I had a look at war\myproj\sc\modules-debug\ISC_Grids.js and found

filterImg:{src:"[SKIN]filter.png", width:50, height:50, showOver:true},

there. So I suppose the OP could change the path via:

isc.ListGrid.changeDefaults("filterImg", {
src:"[SKIN]somepath/myfilter.png",
width:50,
height:50,
showOver:true            });

in his skin's load_skin.js.

Thanks for answering, once again I got a bit more insight.

Best regards,
Blama

[MageshkumarM]

Response

Thank you Mr. Blama..
