List Grid grouped component ordering issues

[smriti]

I am checking screen on Smartgwt version 3.0 .

Browser version - FireFox 19.0

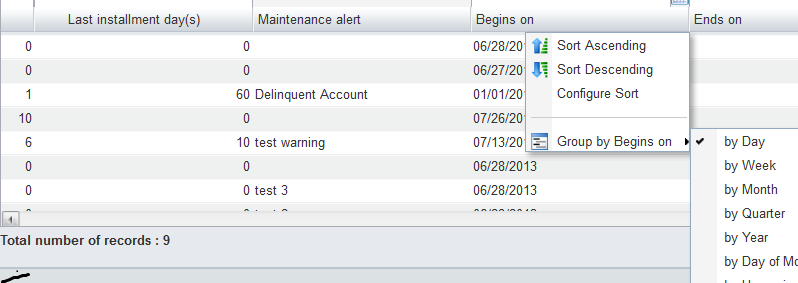

As you group a ListGrid using a Date column and options like "by Day" or "by Week" , the grouped record components created are displayed in random order like instead of displaying in order -- Mon , tue , wed ...
order is some random , tue , fri , mon ...

the ordering is an issue with any option you use while grouping records by date...

Also , the default column which needs to be expanded as soon as the grid is grouped is also not fixed , sometimes first component is expanded , sometimes some other and sometimes all are collapsed

When i checked on smartgwt showcase too same behavior is observed , Is there a way to specify the order in which components are created while grid is grouped ?

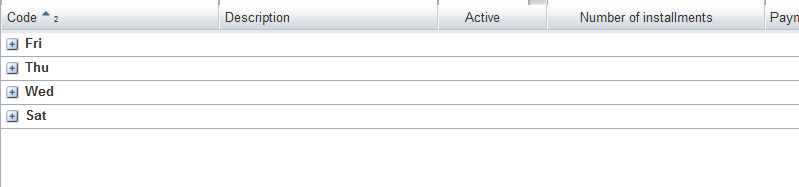

p.s. attached is screenshot of issue

[Isomorphic]

Yes - just sort the grid - see the doc for ListGrid.sort and related APIs

[smriti]

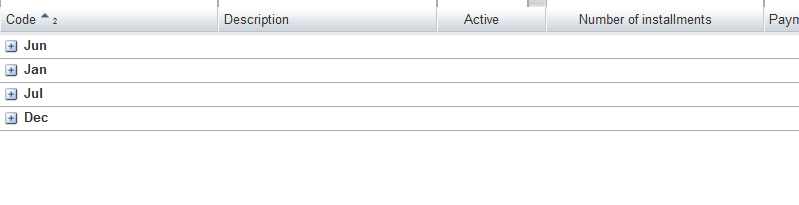

I tried sorting the grid but it seems the sorting happens on data which is a part of grouped components but i want the grouped components themself to render in sorter order . Like if i am grouping the grid on column date -> by Month , I want the grid grouped components to be rendered in correct order , like Jan , Feb , March and so on ....

[Blama]

Hi smriti,

this is working for me in this sample: #grid_grouping_multi

I ungroup and group again by Ship Date. Then I click the column header to sort. It sorts the group values asc/desc as well as the group contents.

@Isomorphic: What I think is a bit confusing is that the group by week/month/quarter don't also include the year (eg. Q1/2009 and Q1/2010 are in the same group).
I know this is configurable somehow, but I'd say the default behaviour is somehow counter-intuitive.

Best regards,
Blama

[Isomorphic]

We're aware of an issue in the framework in this area (combined sorting and grouping) - it's already being looked into and we'll update here when we have more information.

[michalg]

Similar thread.
MichalG

[Isomorphic]

We've just made some grouping/sorting related changes that address a few internal edge cases.

Please retest with a build dated November 25 or later of either 5.1 or 5.0 versions - we may port back to the 4.x series, but we're unlikely to port back as far as 3.0, so you should consider updating to a later version.

@Blama - we're considering your comments

[smriti]

Hi ,

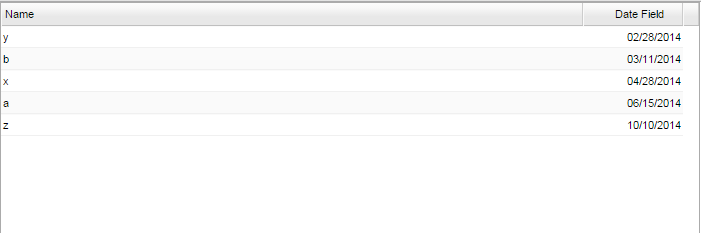

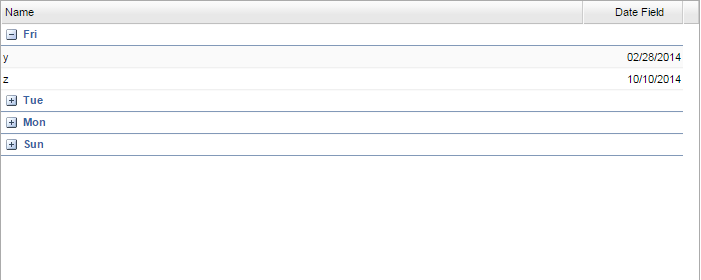

I checked with the build specified in your earlier comment , with the help of function setSortByGroupFirst(true) I could sort the grid as and when it got grouped by date . But in case if we are grouping the grid by date using "by Day" option , it always sorts the grid in descending order . like it will sort the grid from Fri , Thu , Wed , Tue like this instead of Tue , Wed , Thu , Fri . I am attaching the screenshots for reference .
I tried using function - setSortGroupDirection() , but irrespective of me specifying ascending or descending the grid is rendered the same way

Please help

[Isomorphic]

It appears as if we don't yet support sorting by derived group value (i.e. "by day", "by week", etc.) for a date column - the sorting is always done by the actual "raw" date value. That's why you're observing unexpected results.

We consider this more of a limitation than a bug. As you don't have paid support, you'd need to use feature sponsorship to ensure it gets fixed immediately. However, we'll make a note of the issue and it may get addressed in a future release.
