DynamicForm Subclass

[mgbowman]

I'm trying to create a DynamicForm subclass to implement custom handling of a "multiple=true" field in my datasource.

application.ds.xml

<DataSource ...>
  <serverObject ... />
  <fields>
    <field name="vehicles" type="vehicle" multiple="true" />
  </fields>
</DataSource>

vehicle.ds.xml

<DataSource ...>
  <serverObject ... />
  <fields>
    <field name="year" type="integer" />
    <field name="make" type="text" />
    <field name="model" type="text" />
  </fields>
</DataSource>

Let me explain what I'm trying to accomplish.

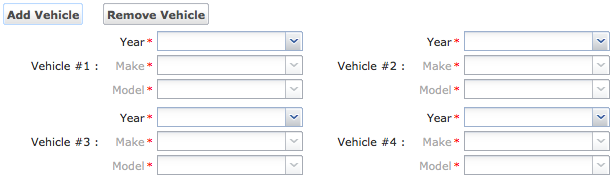

I want a form that has two buttons "Add Vehicle" and "Remove Vehicle" and when clicked will either show / hide the corresponding nested form of (year,make,model) [see attachment].

This showing / hiding is not a problem and is working as expected.

Validation is not a problem either - overriding DynamicForm.validate() and delegating to the nested forms works like a charm.

The problem is aggregating the nested form values by override DynamicForm.getValues(). Using Firebug, the getValues() is not getting called as a part of the ValuesManager.saveData() - the validate() function does get called and aborts saving if a nested form is visible and invalid (i.e. incomplete).

getValues() should be expecting a JS Object like...

{
  vehicles:[{
    year: x1,
    make: "y2",
    model: "z2"
  },{
    year: x2,
    make: "y2",
    model: "z2"
  }]
}

...for correct unmarshalling on the server-side.

Anyone have any ideas on what I'm doing wrong?

Thanks,
--mgbowman

-----

Here's the code for my two forms:

VehiclesForm.js

isc.defineClass("VehiclesForm", "DynamicForm").addProperties({

	count: 0,
	max: 5,

	initWidget: function(config) {
		this.numCols = 4;
		this.fields = [{
			name: "add",
			title: "Add Vehicle",
			type: "button",
			click: this.getID() + ".addVehicle()",
			endRow: false
		},{
			name: "remove",
			title: "Remove Vehicle",
			type: "button",
			click: this.getID() + ".removeVehicle()",
			startRow: false,
			disabled: true
		}];
		this.vehicleForms = [];
		for (var i = 0; i < this.max; i++) {
			this.vehicleForms.add(isc.VehicleForm.create({
				requiredIf: this.getID() + ".count > " + i
			}));
			this.fields.add({
				name: "vehicles",
				title: "Vehicle #" + (i + 1),
				type: "nestedEditor",
				editor: this.vehicleForms[i],
				showIf: this.getID() + ".count > " + i,
			});
		}
		this.Super("initWidget", arguments);
	},

	validate: function(validateHiddenFields) {
		var valid = true;
		for (var i = 0; i < this.count; i++) {
			valid &= this.vehicleForms[i].validate(validateHiddenFields);
		}
		return valid;
	},

	getValues: function() {
		var vehicles = [];
		for (var i = 0; i < this.count; i++) {
			vehicles.add(this.vehicleForms[i].getValues());
		}
		return { vehicles: vehicles }
	},

	addVehicle: function() {
		if (this.count < this.max) {
			this.count++;
			this.markForRedraw();
		}
		if (this.count == this.max) {
			this.getField("add").disable();
		}
		this.getField("remove").enable();
	},

	removeVehicle: function() {
		if (this.count > 0) {
			this.count--;
			this.markForRedraw();
		}
		if (this.count == 0) {
			this.getField("remove").disable();
		}
		this.getField("add").enable();
	}

});

VehicleForm.js

isc.defineClass("VehicleForm", "DynamicForm").addProperties({

	initWidget: function(config) {
		this.fields = [{
    		name: "year",
    		title: "Year",
    		editorType:"select",
    		optionDataSource:vehicleYears,
    		changed: function() {
    			var make = this.form.getField('make');
    			var model = this.form.getField('model');
    			make.clearValue();
    			model.clearValue();
    			make.enable();
    			model.disable();
    			make.fetchData();
    		},
    		validators: [{
    			type: "requiredIf",
    			expression: config.requiredIf
    		}]
    	}, {
        	name: "make",
        	title: "Make",
        	editorType: "select",
        	optionDataSource: vehicleMakes,
        	autoFetchData: false,
        	disabled: true,
        	changed: function() {
        		var model = this.form.getField('model');
        		model.clearValue();
        		model.fetchData();
        		model.enable();
        	},
        	getPickListFilterCriteria: function() {
        		var year = this.form.getValue("year");
        		return {year:year};
        	},
        	validators: [{
        		type: "requiredIf",
        		expression: config.requiredIf
        	}]
    	}, {
    		name: "model",
    		title: "Model",
    		editorType: "select",
    		optionDataSource: vehicleModels,
    		autoFetchData: false,
    		disabled: true,
    		getPickListFilterCriteria: function() {
    			var year = this.form.getValue("year");
    			var make = this.form.getValue("make");
    			return {year: year, make: make};
    		},
    		validators: [{
    			type: "requiredIf",
    			expression: config.requiredIf
    		}]
    	}];
		this.Super("initWidget", arguments);
	}

});

[davidj6]

Looks like a ListGrid to me.

[mgbowman]

Not a big fan of ListGrid in this case. Either way, I managed to figure it out.

I added a hidden 'vehicles' item to the parent VehiclesForm and changed the type of the nested forms from NestedEditorItem to CanvasItem (DynamicForm is a subclass of Canvas). This way, the ValuesManager knows nothing of the nested forms but expects a "vehicles" item from the parent form. My subclass implementation of getValues() returns the proper "multiple" data structure and all is well on the server-side.

Thanks,
--mgbowman
