Problem in printing DynamicForm with section

[gli]

Hello,

I'm trying to print a DynamicForm with the SmartClient printing components, it is working fine in general except with a form which has an embedded section in it.

isc.DynamicForm.create({
    ID: "exampleForm",
    width: 250,
    wrapItemTitles: false,
    fields: [
        {name: "field1", title: "Field 1", type: "text"},
        {type: "canvas", name: "canvas",
            canvas: isc.DynamicForm.create({
                styleName: "defaultBorder",
                wrapItemTitles: false,
                fields: [
                    {defaultValue: "Section", type: "section", sectionExpanded: true, width: "*", itemIds: ["field2"]},
                    {name: "field2", title: "Field 2", type: "text"}
                ]
            })
        },
        {name: "field3", title: "Field 3", type: "text"}
    ]
});

isc.Button.create({
    left: 300,
    title: "Print",
    click: function () {
        isc.Canvas.showPrintPreview(exampleForm);
    }
});

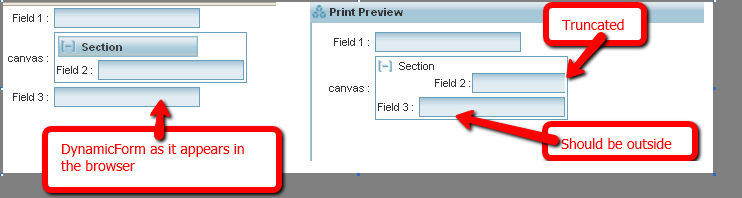

The result is not as it should be (see formPrintPreview.png) :
- "field2" is truncated
- "field3" is included in the canvas used for the section.

Smart Client 7/PowerEdition
Firefox 3.5.x / IE 7

Thank you

[gli]

To compare, I just tried on your feature demo in version 8 by pasting my code in the "Hello world" example, the result is different and a bit better but still incomplete.

[Isomorphic]

Thanks for the test case. We have now applied a fix for this issue. Please try with the next nightly build and let us know if you continue to see the bad printing appearance

Thanks and regards

Isomorphic Software

[gli]

Thanks for the test case. We have now applied a fix for this issue. Please try with the next nightly build and let us know if you continue to see the bad printing appearance

Thanks and regards

Isomorphic Software

I tested with the nightly build of march 8 and it works ok.

However, we cannot currently upgrade to version 8.
In order for us to provide a fix for our customers (on v7), could you provide a patch for us in version 7 ?

Thank you

[Isomorphic]

We've added patch code for both 7.0rc2 and 8.0 to the Addendums forum - see this thread: http://forums.smartclient.com/showthread.php?t=15857
