groupByField property with TileGrid

[acarur01]

Is this supported for TileGrid? I tried adding the property but it does not work. If it is not supported, how do I modify it so that I can have the same functionality?


data is in sample isomorphic/system/reference/SmartClient_Explorer.html#tilingBasic

isc.TileGrid.create({
    tileWidth:150,
    tileHeight:190,
    height:400,
    width:"100%",
    showAllRecords:true,groupByField:"status",
    data:animalData,
    fields: [
        {name:"picture",
            type:"image", imageURLPrefix:"/isomorphic/system/reference/inlineExamples/tiles/images/"},
        {name:"commonName"},
        {name:"status"}

    ]
});

[Isomorphic]

No, the TileGrid does not support grouping. You would have to build such functionality on your own, or sponsor it.

[acarur01]

Ok. How about customizing the overall look of the tilegrid? I want to remove that grey border but setting the style does not work:

I ran in feature explorer
SmartClient Version: v8.2p_2012-06-06/PowerEdition Development Only (built 2012-06-06)

isc.TileGrid.create({
    tileWidth:150,
    tileHeight:190, styleName: "myHighGridCell",
    height:400,
    width:"100%",
    showAllRecords:true,
    data:animalData,
    fields: [
        {name:"picture",
            type:"image", imageURLPrefix:"/isomorphic/system/reference/inlineExamples/tiles/images/"},
        {name:"commonName"},
        {name:"status"}

    ]
});

.myHighGridCell{
    font-family:Verdana,Bitstream Vera Sans,sans-serif; font-size:11px; text-overflow:ellipsis;
    color:black;
    border:none;
    background-color:#ffc0c0;
}

[Isomorphic]

That works fine, but note, it's going to affect the border around the TileGrid as a whole, not the individual tiles.

[acarur01]

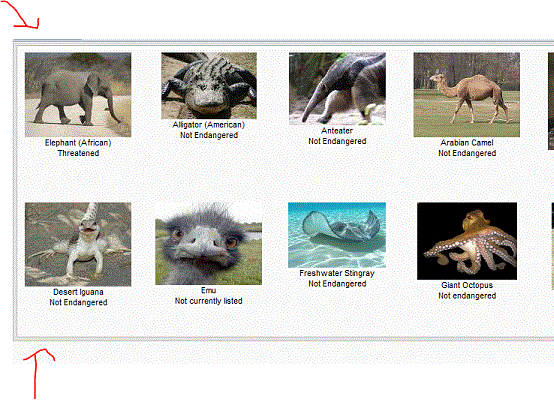

That is exactly what I want but it's not doing that. Please see attached html file and screenshot. The grey border around the tilegrid is still there.

[Isomorphic]

That grey "border" is caused by showEdges:true, it is not a CSS border.

[acarur01]

Oh ok. thanks
