    Expanding rows w/ custom components has streaks in background

    I started with this demo:
    https://www.smartclient.com/smartcli...izeIncrease=10

    and put this code in the sample:


    Code:
    isc.ListGrid.create({
        ID: "countryList",
        width:500, height:600,
        alternateRecordStyles:true,
        expansionFieldImageShowSelected:true,
        data: countryData,
        fields: [
            {name: "countryName", title: "Country"},
            {name: "capital", title: "Capital"},
            {name: "continent", title: "Continent"}
        ],
        canExpandRecords: true,

        getExpansionComponent : function (record) {

            var countryGrid = isc.ListGrid.create({
                height: 224,
                canEdit: true,
                modalEditing: true,
                editEvent: "click",
                listEndEditAction: "next",
                autoSaveEdits: false
            });

            var hLayout = isc.HLayout.create({
                align: "center",padding: 5,
                membersMargin: 10,
                members: [

                    isc.IButton.create({
                        title: "Save",
                        click: function () {
                            countryGrid.saveAllEdits();
                        }
                    }),
                    isc.IButton.create({
                        title: "Discard",
                        click : function () {
                            countryGrid.discardAllEdits();
                        }
                    }),
                    isc.IButton.create({
                        title: "Close",
                        click : function () {
                            categoryList.collapseRecord(record);
                        }
                    })
                ]
            });

            var layout = isc.VLayout.create({
                padding: 5,
                members: [ countryGrid, hLayout ]
            });

            return layout;
        }
    });

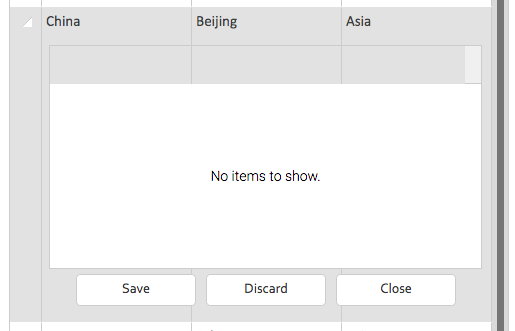

    and this is what I see with Chrome
    Version 66.0.3359.181 (Official Build) (64-bit)

    Click image for larger version

Name:	streaks.png
Views:	123
Size:	9.5 KB
ID:	253471



    where it looks like the column borders from the parent ListGrid streak down behind the custom component. I don't like seeing those streaks -- is there a way to hide them?
    This is with Stratus, Tahoe and Obsidian do not do it.


    #2
    Well, easily addressed on my end by changing

    Code:
      border-right: 1px solid #cccccc;
    to

    Code:
      border-right: 1px solid transparent;
    in the cell css.

    Comment


      #3
      Your component is embedded in cells, so borders will show through if you leave the expansion component's background transparent. Getting rid of the borders is one approach, or just set a white or grey background for your expansion component.

      Comment
