  • 12.0p: Problem with moving modal windows out of the browser visible area

    Hi Isomorphic,

    please see this unmodified modal window sample (v12.0p_2019-01-25).
    As you can see in the video, it is easy to move the Window and it's header out of view, so that you can't move it into view again.
    IMHO it should not be possible to move the window header out of view.
    • Moving the Window down, the header should stay in the browser area at all times
    • Moving the Window up, the complete window should stay in the browser area at all times
    • Moving the Window left/right, some pixels (10?) should stay visible, so that one can move the Window into view again
    Right now you can move the window out of view and if it does not set dismissOnEscape:true, you can "lock" the whole application until a F5 Browser window reload (possible in the sample as well).
    Of course tabbing does still work, but you can expect from non-developer users to find out about this.

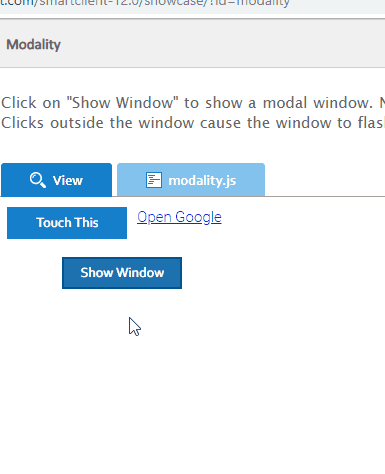

    Click image for larger version

Name:	Window out of view.gif
Views:	1
Size:	140.8 KB
ID:	256751

    Best regards
    Blama

  • #2
    Hi Isomorphic,

    actually, here something even more unexpected is possible. Hitting the "Tab"-key does move the whole application out of view, as the focus is moved to an element outside normal viewport.

    Click image for larger version

Name:	Tab focuses outside viewport.gif
Views:	1
Size:	148.3 KB
ID:	256753


    Best regards
    Blama

    Comment


    • #3
      Hi Isomorphic,

      thinking about it, in combination with #2, the rule for moving windows should be "the user can't move windows out of the view at all". Otherwise tabbing the invisible window into view will always work.
      If the window is so big, that users might want to move it, the developer has to ensure that the window is either minimizable or realizable.

      Best regards
      Blama

      Comment


      • #4
        Hi Blama
        You can use keepInParentRect in your app code to achieve this.
        On reflection we've decided this is a sensible default so we'll be making that change shortly in the 12.1 branch. For older branches you can set the property yourself.

        One note: If you're dragging a top level window, and the page content overflows the browser window in either direction, keepInParentRect does not currently prevent the user from dragging the window out of the viewport in that direction. You can see this in the showcase sample you linked to above - setting 'keepInParentRect:true' on the window doesn't currently prevent the user from dragging it off the bottom of the screen [even though scrollbars have been suppressed, some content overflows the browser window vertically on that page].
        Anyway this appears to be a bug and we have a developer taking a look. It will likely be changed at the same time as changing the default keepInParentRect flag - either today or early next week

        Regards
        Isomorphic Software
        Last edited by Isomorphic; 8th Feb 2019, 15:29.

        Comment


        • #5
          Hi Isomorphic,

          thanks. keepInParentRect does really help and is already fine for me.

          I do see the issue you mention in the showcase with the bottom border.
          If you are fixing this, perhaps you can also look here (minor for me): It is not possible to move the window to the very right border, were I assume you keep place for a scrollbar - even if I set
          Code:
                  mainLayout.setOverflow(Overflow.HIDDEN);
                  mainLayout.setLeaveScrollbarGap(false);
          like in the sample below.

          BuiltInDS.java (v12.0p_2019-01-17):
          Code:
          package com.smartgwt.sample.client;

          import com.google.gwt.core.client.EntryPoint;
          import com.smartgwt.client.Version;
          import com.smartgwt.client.core.KeyIdentifier;
          import com.smartgwt.client.types.Overflow;
          import com.smartgwt.client.util.Page;
          import com.smartgwt.client.util.PageKeyHandler;
          import com.smartgwt.client.util.SC;
          import com.smartgwt.client.widgets.IButton;
          import com.smartgwt.client.widgets.Window;
          import com.smartgwt.client.widgets.events.ClickEvent;
          import com.smartgwt.client.widgets.events.ClickHandler;
          import com.smartgwt.client.widgets.layout.VLayout;

          public class BuiltInDS implements EntryPoint {
              private VLayout mainLayout;
              private IButton recreateBtn;

              public void onModuleLoad() {
                  KeyIdentifier debugKey = new KeyIdentifier();
                  debugKey.setCtrlKey(true);
                  debugKey.setKeyName("D");

                  Page.registerKey(debugKey, new PageKeyHandler() {
                      public void execute(String keyName) {
                          SC.showConsole();
                      }
                  });

                  mainLayout = new VLayout(20);
                  mainLayout.setWidth100();
                  mainLayout.setHeight100();
                  mainLayout.setOverflow(Overflow.HIDDEN);
                  mainLayout.setLeaveScrollbarGap(false);

                  recreateBtn = new IButton("Recreate");
                  recreateBtn.addClickHandler(new ClickHandler() {
                      @Override
                      public void onClick(ClickEvent event) {
                          recreate();
                      }
                  });
                  mainLayout.addMember(recreateBtn);
                  recreate();
                  mainLayout.draw();
              }

              private void recreate() {
                  Window w = new Window();
                  w.setWidth("95%");
                  w.setHeight("95%");
                  w.setKeepInParentRect(true);
                  w.setMembersMargin(0);
                  w.setModalMaskOpacity(70);
                  w.setTitle(" (" + Version.getVersion() + "/" + Version.getSCVersionNumber() + ")");
                  w.setTitle("Problem on right border" + w.getTitle());
                  w.setShowMinimizeButton(false);
                  w.setIsModal(true);
                  w.setShowModalMask(true);
                  w.centerInPage();
                  w.show();
              }
          }
          Best regards
          Blama

          Comment


          • #6
            A change was made around Jan 26 which should address this very issue. Can you try an updated nightly build?

            Comment


            • #7
              Hi Isomorphic,

              you are right, this is fixed using v12.0p_2019-02-12.

              Then only your own showcase lower-border issue is left here in 12.0p

              In the 12.1d sample (SNAPSHOT_v12.1d_2019-02-12) I can already see that you changed the default of the Window-class and that the showcase lower-border issue does not happen there.

              Best regards
              Blama

              Comment


              • #8
                The "lower-border" issue you're referring to is the issue where if keepInParentRect is true, you can drag the window off the bottom edge of the showcase, correct?
                If so, this should already be resolved in 12.0.
                If you go here:
                https://www-demos.smartclient.com/sm...e/?id=modality
                And modify the source to add 'keepInParentRect:true' to the window definition it appears to stay on the page as it should for us.

                Are you seeing something different?

                Thanks
                Isomorphic Software

                EDIT: Never mind! We do see that even with keepInParentRect and a recent build, the window can be dragged a little further down than should be possible (so its bottom edge is offscreen). We're taking another look

                Second Edit: We do see what's causing this. We'll make a change to the showcase to avoid this effect but it should be safe to ignore outside this usage
                Last edited by Isomorphic; 14th Feb 2019, 16:11.
