RPCManager.loadScreen: HeaderContextMenu and UTF8 bug

[kiipper]

Using:
SmartClient Version: v8.3_2012-11-20/Pro Deployment (built 2012-11-20)
Browsers: IE9, FF19 or Chrome

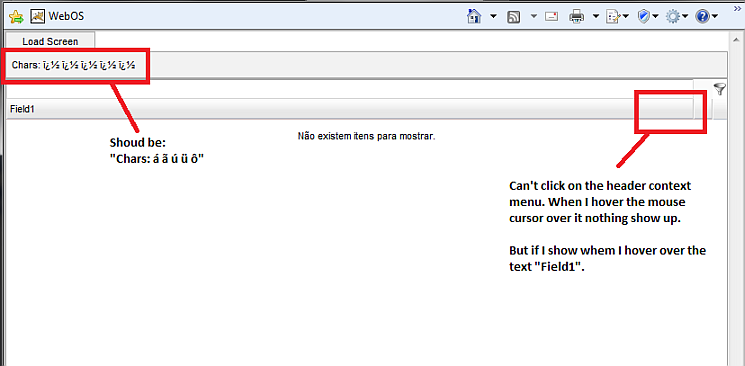

I'm having two problems with the RPCManager.loadScreen methods:
1) I can't render some characters (like "á ã ú ü ô").
2) I can't click on the Listgrid HeaderContextMenu. It don't show up when I hover my mouse over where it shoud be. But when I hover over the field text it show up.

When I use a VisualBuilder screen like this one ("test.ui.xml"):

<ToolStripButton ID="ToolStripButtonAdd" autoDraw="false">
    <title>Chars: á ã ú ü ô</title>
    <click>
    	<target>ListGridAbertura</target>
    	<name>startEditingNew</name>
    	<title>Start Editing New</title>
    </click>
</ToolStripButton>


<ToolStrip ID="ToolStrip1" autoDraw="false">
    <members><Canvas ref="ToolStripButtonAdd"/>
    </members>
    <visibilityMode>multiple</visibilityMode>
</ToolStrip>


<ListGrid autoFetchData="false" ID="ListGridTest" autoDraw="false">
    <fields>
        <ListGridField name="Field1" title="Field1"/>
    </fields>
    <showFilterEditor>true</showFilterEditor>
    <canEdit>true</canEdit>
    <canRemoveRecords>true</canRemoveRecords>
</ListGrid>


<VLayout ID="test" autoDraw="false">
    <members><Canvas ref="ToolStrip1"/><Canvas ref="ListGridTest"/>
    </members>
</VLayout>


<DataView ID="DataViewTest" width="100%" height="100%" overflow="hidden" autoDraw="true">
    <members><Canvas ref="test"/>
    </members>
    <modulesDir>modules/</modulesDir>
</DataView>

I'm using the java code:

    public void onModuleLoad() {

        final VLayout mainCanvas = new VLayout();
        mainCanvas.setHeight100();
        mainCanvas.setWidth100();

        final Dialog dummyDialog = new Dialog();


        com.smartgwt.client.widgets.Button loadScreenButton = new com.smartgwt.client.widgets.Button("Load Screen");
        mainCanvas.addMember(loadScreenButton);
        loadScreenButton.addClickHandler(new com.smartgwt.client.widgets.events.ClickHandler() {
            @Override
            public void onClick(com.smartgwt.client.widgets.events.ClickEvent event) {
                SC.askforValue("Load Screen View", "Type ScreenView Name (<screenView>.ui.xml or <screenView>.js)", "test", new ValueCallback() {
                    @Override
                    public void execute(final String value) {
                        RPCManager.loadScreen(value, new LoadScreenCallback() {
                            @Override
                            public void execute() {
                                Canvas c = Canvas.getById(value);

                                if (c == null) {
                                    SC.say("Screen not found: [" + value + "]");
                                } else {
                                    mainCanvas.addMember(c);
                                }
                            }
                        }, new String[]{value});
                    }
                }, dummyDialog);
            }
        });

        mainCanvas.draw();

    }

It does happens only if I add the <screen>.ui.xml file contents under a Layout.

NOTE: it also happens with SmartGWT4 Pro.

[kiipper]

Answering my own question about the Listgrid HeaderContextMenu:

I could fix it changing the autodraw property of the ListGrid to false:

<DataView ID="DataViewTest" width="100%" height="100%" overflow="hidden" autoDraw="false">

[Isomorphic]

On the i18n issue, take a look at the Internationalization overview in the docs. There's a bunch of advice there about how to make sure your file the servlet engine uses UTF8.

[kiipper]

Isomorphic,

is it possible to configure the ScreenLoaderServlet with the same parameters used in the DataSourceLoader?

Something like:

 <servlet>
   <servlet-name>DataSourceLoader</servlet-name>
   <servlet-class>com.isomorphic.servlet.DataSourceLoader</servlet-class>
   <init-param>
     <param-name>encoding</param-name>
     <param-value>some-other-encoding</param-value>
   </init-param>
 </servlet>

[Isomorphic]

There's no need to do this, because it defaults to UTF8 already. See the Internationalization overview.
