    [13.0p] - ListGrid has unaligned frozen column rows when using multi- and single- line rows after hiding and showing frozen column

    Hi there,

    We currently encounter a bug regarding the appearance of ListGrid rows. It seems that this is caused by line breaks in some but not all ListGrid rows.

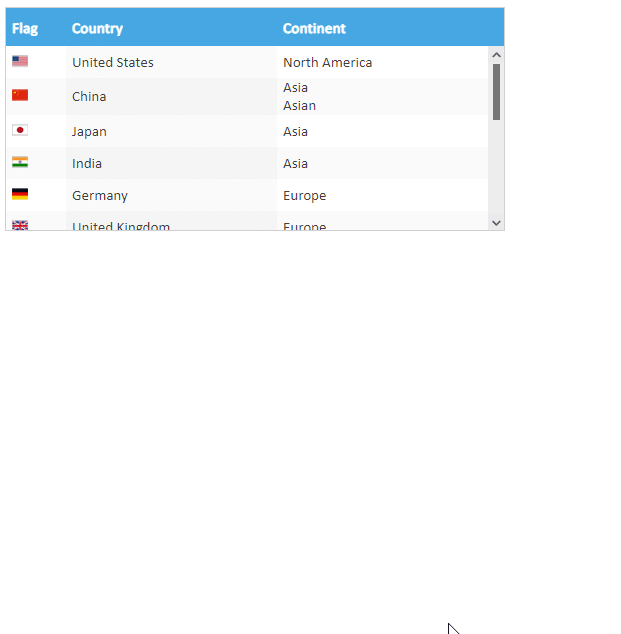

    Example steps to reproduce (see attached GIF): Freeze the "Flag" column, hide the "Flag" column, show the "Flag" column -> The alignment of the frozen column(s) to the other not frozen column is shifted after the first multiline row.


    Click image for larger version

Name:	multiline-listgrid-row-shifted.gif
Views:	65
Size:	473.6 KB
ID:	271585
    We used Version 13.0p (Built: 2024-01-27), Chrome Version 121.0.6167.85 and based the provided example on one of your showcases (https://smartclient.com/smartclient/...izeIncrease=10)

    Code:
    isc.ListGrid.create({
        ID: "countryList",
        width:500, height:224, alternateRecordStyles:true,
        data: countryData,
        fields:[
            {name:"countryCode", title:"Flag", width:60, type:"image", imageURLPrefix:"flags/16/", imageURLSuffix:".png"},
            {name:"countryName", title:"Country"},
            {name:"capital", title:"Capital", showIf:"false"},
            {name:"continent", title:"Continent"}
        ],
        canReorderFields: true
    })
    Code:
    countryData = [

    {
        continent:"North America",
        countryName:"United States",
        countryCode:"US",
        area:9631420,
        population:298444215,
        gdp:12360.0,
        independence:new Date(1776,6,4),
        government:"federal republic",
        government_desc:2,
        capital:"Washington, DC",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/United_states"
    },
    {
        continent:"Asia<br />Asian",
        countryName:"China",
        countryCode:"CH",
        area:9596960,
        population:1313973713,
        gdp:8859.0,
        government:"Communist state",
        government_desc:0,
        capital:"Beijing",
        member_g8:false,
        article:"http://en.wikipedia.org/wiki/China"
    },
    {
        continent:"Asia",
        countryName:"Japan",
        countryCode:"JA",
        area:377835,
        population:127463611,
        gdp:4018.0,
        government:"constitutional monarchy with parliamentary government",
        government_desc:1,
        capital:"Tokyo",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/Japan"
    },
    {
        continent:"Asia",
        countryName:"India",
        countryCode:"IN",
        area:3287590,
        population:1095351995,
        gdp:3611.0,
        independence:new Date(1947,7,15),
        government:"federal republic",
        government_desc:2,
        capital:"New Delhi",
        member_g8:false,
        article:"http://en.wikipedia.org/wiki/India"
    },
    {
        continent:"Europe",
        countryName:"Germany",
        countryCode:"GM",
        area:357021,
        population:82422299,
        gdp:2504.0,
        independence:new Date(1871,0,18),
        government:"federal republic",
        government_desc:2,
        capital:"Berlin",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/Germany"
    },
    {
        continent:"Europe",
        countryName:"United Kingdom",
        countryCode:"UK",
        area:244820,
        population:60609153,
        gdp:1830.0,
        independence:new Date(1801,0,1),
        government:"constitutional monarchy",
        government_desc:1,
        capital:"London",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/United_kingdom"
    },
    {
        continent:"Europe",
        countryName:"France",
        countryCode:"FR",
        area:547030,
        population:60876136,
        gdp:1816.0,
        government:"republic",
        government_desc:5,
        capital:"Paris",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/France"
    },
    {
        continent:"Europe",
        countryName:"Italy",
        countryCode:"IT",
        area:301230,
        population:58133509,
        gdp:1698.0,
        independence:new Date(1861,2,17),
        government:"republic",
        government_desc:5,
        capital:"Rome",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/Italy"
    },
    {
        continent:"Asia",
        countryName:"Russia",
        countryCode:"RS",
        area:17075200,
        population:142893540,
        gdp:1589.0,
        independence:new Date(1991,7,24),
        government:"federation",
        government_desc:3,
        capital:"Moscow",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/Russia"
    },
    {
        continent:"South America",
        countryName:"Brazil",
        countryCode:"BR",
        area:8511965,
        population:188078227,
        gdp:1556.0,
        independence:new Date(1822,8,7),
        government:"federative republic",
        government_desc:3,
        capital:"Brasilia",
        member_g8:false,
        article:"http://en.wikipedia.org/wiki/Brazil"
    },
    {
        continent:"North America",
        countryName:"Canada",
        countryCode:"CA",
        area:9984670,
        population:33098932,
        gdp:1114.0,
        independence:new Date(1867,6,1),
        government:"constitutional monarchy with parliamentary democracy and federation",
        government_desc:1,
        capital:"Ottawa",
        member_g8:true,
        article:"http://en.wikipedia.org/wiki/Canada"
    },
    {
        continent:"North America",
        countryName:"Mexico",
        countryCode:"MX",
        area:1972550,
        population:107449525,
        gdp:1067.0,
        independence:new Date(1810,8,16),
        government:"federal republic",
        government_desc:2,
        capital:"Mexico (Distrito Federal)",
        member_g8:false,
        article:"http://en.wikipedia.org/wiki/Mexico"
    },
    {
        continent:"Europe",
        countryName:"Spain",
        countryCode:"SP",
        area:504782,
        population:40397842,
        gdp:1029.0,
        independence:new Date(1492,0,1),
        government:"parliamentary monarchy",
        government_desc:4,
        capital:"Madrid",
        member_g8:false,
        article:"http://en.wikipedia.org/wiki/Spain"
    },
    {
        continent:"Asia",
        countryName:"South Korea",
        countryCode:"KS",
        area:98480,
        population:48846823,
        gdp:965.3,
        independence:new Date(1945,7,15),
        government:"republic",
        government_desc:5,
        capital:"Seoul",
        member_g8:false,
        article:"http://en.wikipedia.org/wiki/South_korea"
    },
    {
        continent:"Asia",
        countryName:"Indonesia",
        countryCode:"ID",
        area:1919440,
        population:245452739,
        gdp:865.6,
        independence:new Date(1945,7,17),
        government:"republic",
        government_desc:5,
        capital:"Jakarta",
        member_g8:false,
        article:"http://en.wikipedia.org/wiki/Indonesia"
    }

    ]
    Best regards

    #2
    If you want your variable-sized content to cause some rows to be expanded and be larger than others, then you must set fixedRecordHeights:false.

    If instead you want the content to be clipped so all rows are the same size, set enforceVClipping:true.

    See the docs for these two properties for details.

    Comment


      #3
      Thank you! Your suggested solution with fixedRecordHeights:false works for us in combination with explicit canFreezeFields:true
