    #16
    Hi!
    Sorry for the silence. This issue should be already resolved, but the thread didn't get updated - enableWhen and visibleWhen should now be behaving reliably in both 13.0 and 13.1 for Adaptive menu items (shown in buttons or adaptive-menu items)
    If you see any problems with this in the latest nightly build, please let us know

    Regards
    Isomorphic Software

    Comment


      #17
      On the support, we do have a flag in your profile we can see, but we were also aware the renewal was in-process, so gave you some leeway!

      Comment


        #18
        Originally posted by Isomorphic View Post
        Hi!
        Sorry for the silence. This issue should be already resolved, but the thread didn't get updated - enableWhen and visibleWhen should now be behaving reliably in both 13.0 and 13.1 for Adaptive menu items (shown in buttons or adaptive-menu items)
        If you see any problems with this in the latest nightly build, please let us know

        Regards
        Isomorphic Software
        I'm testing it right now and seems to work, thank you very much!

        Regarding the enableIf, dynamicTitle and dynamicIcon, are they supposed to work only when the MenuItems aren't buttons?

        Comment


          #19
          Actually I've got a problem when used in a particular layout:

          Code:
          isc.AdaptiveMenu.create({
              ID: "adaptiveMenu",
              align:"center",
              defaultLayoutAlign: "center",
              items: [
                  {title: "Contact", icon:"Approve"},
                  {title: "Hire Now", icon:"Approve"},
                  {title: "View Résumé", icon:"Approve"},
                  {title: "Edit", icon:"Approve"},
                  {title: "Foo", icon:"Approve"},
                  {title: "Bar", icon:"Approve"}
              ]
          });

          isc.ToolStrip.create({
              ID: "toolStrip",
              height:40,
              members: [
              isc.IButton.create({title:"Close",icon:"Close",autoFit:true}),
              adaptiveMenu,
              isc.IButton.create({title:"Save",icon:"Save",autoFit:true})]
          });

          isc.Window.create({
              height:400,
              width: 400,
              canDragResize: true,
              showFooter:true,
              footerControls: [toolStrip]
          });
          actually in my application the behaviour is even worse that in this test case, anyway if you try it, you'll see it working at first draw and when drag-resizing if you widen the window, but if you narrow it, it will clip the ToolStrip and the AdaptiveMenu.

          Maybe it's a bad usage to put a toolstrip in the window footer?

          Comment


            #20
            and, on iOS, happens also on a layout structured like that:

            Click image for larger version

Name:	2024-08-26 22.25.11.jpg
Views:	69
Size:	18.1 KB
ID:	273367

            and actually also on desktop, if I narrow the browser window to 460px, and do a refresh, this is the clipped ToolStrip (or the AdaptiveMenu?):

            Click image for larger version

Name:	2024-08-26 22.37.56.jpg
Views:	60
Size:	24.7 KB
ID:	273368
            you may see the "More..." menuButtonTitle clipped

            Comment


              #21
              Seems to work perfectly when the ToolStrip is in the gridComponents under the body of a grid

              Comment


                #22
                another question about getAdaptiveMenu (): I see it returns correctly the "adaptiveMenuID" when the item is a ToolStripButton, but when it's a MenuItem, in the handlers there's 'menu' which actually is "adaptiveMenuID_menu", so I still have to use menu.creator. Is it intended to work like this?

                Comment


                  #23
                  SmartClient Version: SNAPSHOT_v13.1d_2024-08-27/AllModules Development Only (built 2024-08-27)

                  Safari on iOS (MacOS Simulator)
                  Firefox, Chrome, Safari on MacOS

                  Hello, I've managed to create a testcase which reproduces the problem I've got in my application.
                  The problem is that in my AdaptiveMenuItems I've got an enableWhen/visibleWhen for every item.
                  Please try this test case:

                  Code:
                  isc.DynamicForm.create({
                      ID: "exampleForm",
                      width: 300,
                      fields: [
                          {name: "username",
                           title: "Username",
                           type: "text",
                           width: "*",
                           required: true,
                           defaultValue: "bob"
                          },
                          {name: "email",
                           title: "Email",
                           required: true,
                           width: "*",
                           type: "text",
                           defaultValue: "bob@isomorphic.com"
                          },
                          {name: "password",
                           title: "Password",
                           width: "*",
                           required: true,
                           type: "password"
                          },
                          {name: "password2",
                           required: true,
                           title: "Password again",
                           width: "*",
                           type: "password",
                           wrapTitle: false
                          }
                      ]
                  });

                  isc.AdaptiveMenu.create({
                      ID: "adaptiveMenu",
                      align:"center",
                      defaultLayoutAlign: "center",
                      items: [
                          {title: "Contact", visibleWhen:{fieldName:"exampleForm.values.username", operator:"equals", value:"bob"}},
                          {title: "Hire Now", visibleWhen:{fieldName:"exampleForm.values.username", operator:"equals", value:"bob"}},
                          {title: "View Résumé", visibleWhen:{fieldName:"exampleForm.values.username", operator:"equals", value:"bob"}},
                          {title: "Edit", visibleWhen:{fieldName:"exampleForm.values.username", operator:"equals", value:"bob"}},
                          {title: "Foo", visibleWhen:{fieldName:"exampleForm.values.username", operator:"equals", value:"bob"}},
                          {title: "Bar", visibleWhen:{fieldName:"exampleForm.values.username", operator:"equals", value:"bob"}}
                      ]
                  });

                  isc.ToolStrip.create({
                      ID: "toolStrip",
                      height:40,
                      members: [
                      isc.IButton.create({title:"Close",icon:"Close",autoFit:true}),
                      adaptiveMenu,
                      isc.IButton.create({title:"Save",icon:"Save",autoFit:true})]
                  });

                  isc.Window.create({
                      height:270,
                      width: 450,
                      canDragResize: true,
                      showFooter:true,
                  items:[exampleForm],
                      footerControls: [toolStrip]
                  });

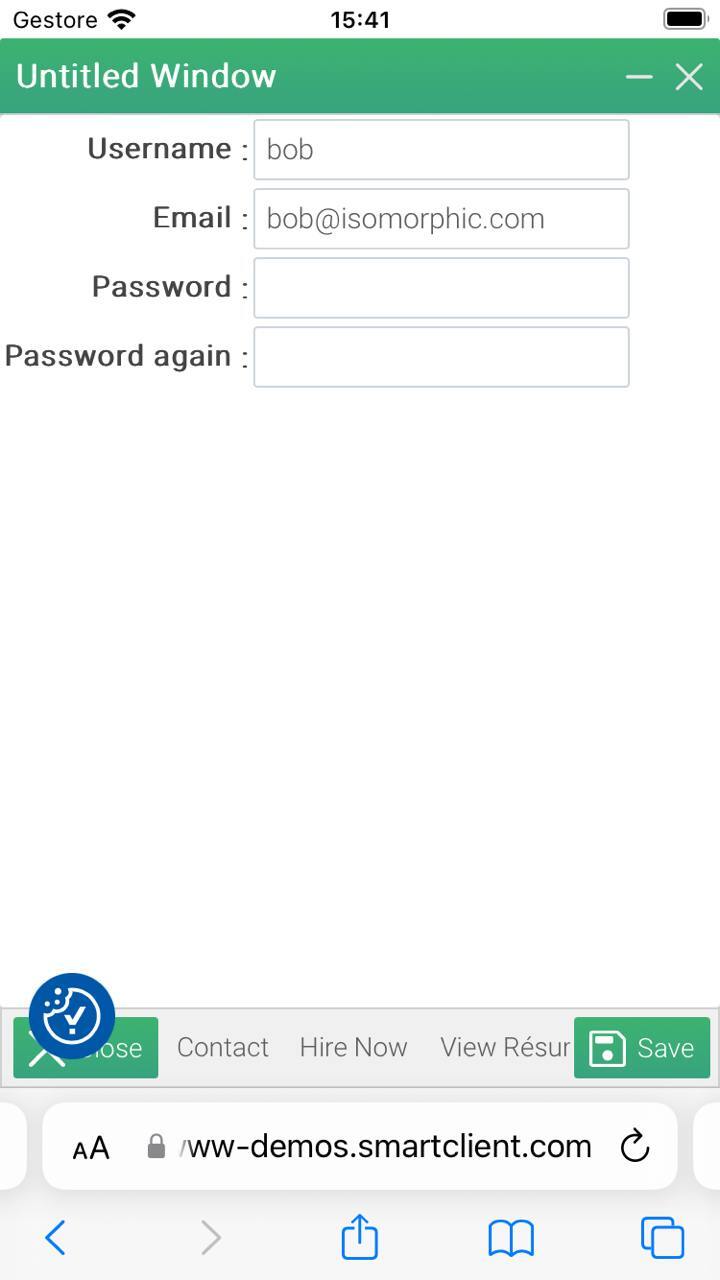

                  this is the result on iOS:

                  Click image for larger version  Name:	2024-08-27 15.44.16.jpg Views:	0 Size:	44.9 KB ID:	273377

                  This is Safari on MacOS:

                  Click image for larger version  Name:	2024-08-27 15.46.30.jpg Views:	0 Size:	13.3 KB ID:	273378
                  Attached Files
                  Last edited by claudiobosticco; 27 Aug 2024, 05:52.

                  Comment


                    #24
                    Hi Claudio
                    Thanks for the test cases. We are reproducing the problems you're seeing and will follow up when we have more information for you

                    Regards
                    Isomorphic Software

                    Comment


                      #25
                      Hi Claudio
                      A quick update on the various issues in this thread:
                      - The problem in your sample where resizing a window doesn't resize the adaptive menu in a predictable way is fixed
                      - The problem where adding "visibleWhen" can cause odd extra buttons to show up is also fixed
                      - We're still reviewing enableIf, dynamicTitle and dynamicItem and will keep you posted.

                      You can see the fixes for the first two points in the next nightly build (Aug 30 or above)

                      Regards
                      Isomorphic Software

                      Comment


                        #26
                        SmartClient Version: SNAPSHOT_v13.1d_2024-08-30/Enterprise Development Only (built 2024-08-30)

                        Hello, from a quick test with the sample in post #23, it seems the fixes aren't included in today's build.

                        Comment


                          #27
                          neither in
                          SmartClient Version: SNAPSHOT_v13.1d_2024-08-31/AllModules Development Only (built 2024-08-31)

                          please let me know when I may retry

                          Comment


                            #28
                            Hi Claudio
                            We've retested with the latest nightly build (SmartClient 13.1 dated September 3) and aren't reproducing the problems with your sample code.

                            There are several issues raised in this thread. If things are still misbehaving for you with the latest nightly, can you confirm:
                            - What bad behavior are you seeing with the latest build
                            - Are you using the source in this sample or something else?
                            - What steps (user interactions) are you performing to cause the problem to occur?
                            - How are you running this source? (Standalone HTML page vs the Showcase sample viewer)
                            - What environment or environments are you seeing the problem on


                            Thanks and Regards
                            Isomorphic Software

                            Comment


                              #29
                              SmartClient Version: SNAPSHOT_v13.1d_2024-09-04/Enterprise Deployment (built 2024-09-04)

                              Hello, to clarify, from now on I'll be testing with this specific test case, which I hope is clearer and more closely aligned with my actual use case:

                              Code:
                              isc.DynamicForm.create({
                                  ID: "exampleForm",
                                  width: 300,
                                  fields: [
                                      {
                                          name: "username",
                                          title: "Username",
                                          type: "text",
                                          width: "*",
                                          required: true,
                                          defaultValue: "bob"
                                      },
                                      {
                                          name: "email",
                                          title: "Email",
                                          required: true,
                                          width: "*",
                                          type: "text",
                                          defaultValue: "bob@isomorphic.com"
                                      }
                                  ]
                              });

                              isc.AdaptiveMenu.create({
                                  ID: "adaptiveMenu",
                                  menuButtonTitle: "More...",
                                  align: "center",
                                  defaultLayoutAlign: "center",
                                  items: [
                                      {
                                          title: "1 Enabled",
                                          enableWhen: {fieldName: "exampleForm.values.email", operator: "equals", value: "bob@isomorphic.com"},
                                          visibleWhen: {fieldName: "exampleForm.values.username", operator: "equals", value: "bob"}
                                      },
                                      {
                                          title: "2 Disabled",
                                          enableWhen: {fieldName: "exampleForm.values.email", operator: "notEqual", value: "bob@isomorphic.com"},
                                          visibleWhen: {fieldName: "exampleForm.values.username", operator: "equals", value: "bob"}
                                      },
                                      {
                                          title: "3 Disabled",
                                          enableWhen: {fieldName: "exampleForm.values.email", operator: "notEqual", value: "bob@isomorphic.com"},
                                          visibleWhen: {fieldName: "exampleForm.values.username", operator: "equals", value: "bob"}
                                      },
                                      {
                                          title: "4 Enabled",
                                          enableWhen: {fieldName: "exampleForm.values.email", operator: "equals", value: "bob@isomorphic.com"},
                                          visibleWhen: {fieldName: "exampleForm.values.username", operator: "notEqual", value: "bobb"}
                                      },
                                      {
                                          title: "5 Disabled",
                                          enableWhen: {fieldName: "exampleForm.values.email", operator: "notEqual", value: "bob@isomorphic.com"},
                                          visibleWhen: {fieldName: "exampleForm.values.username", operator: "notEqual", value: "bobb"}
                                      },
                                      {
                                          title: "6 Enabled",
                                          enableWhen: {fieldName: "exampleForm.values.email", operator: "equals", value: "bob@isomorphic.com"},
                                          visibleWhen: {fieldName: "exampleForm.values.username", operator: "equals", value: "bob"}
                                      }
                                  ]
                              });

                              isc.ToolStrip.create({
                                  ID: "toolStrip",
                                  height: 32,
                                  width: "100%",
                                  layoutMargin: 0,
                                  defaultLayoutAlign: "center",
                                  members: [
                                      isc.IButton.create({title: "Close", icon: "Close", autoFit: true}),
                                      adaptiveMenu,
                                      isc.IButton.create({title: "Save", icon: "Save", autoFit: true})]
                              });

                              isc.Window.create({
                                  title: isc.version,
                                  height: 270,
                                  width: 450,
                                  canDragResize: true,
                                  showFooter: true,
                                  items: [exampleForm],
                                  footerControls: [toolStrip]
                              });
                              I recorded my screen to help illustrate the issues:

                              https://www.youtube.com/watch?v=oc3BHl2-IpI

                              As you may see, at draw the MenuButton is clipped. Enabled and disabled states are correct (they match the titles if you don't change the values in the form).

                              If you try to widen the Window, the MenuButton remains clipped. Sometimes, only a few pixels are visible, making it barely clickable.

                              Next, I narrowed the window, and after opening the menu, you'll notice that the MenuItem "3 Disabled" is actually enabled.

                              I've observed similar results using Safari, Firefox, and Chrome on macOS, and I've now also tested Edge on Windows 11 Enterprise.

                              I run it in the showcase, both from inside a js tab, or in the browser console. But I've got the same behaviour also running the same testcase in my application.

                              when I run the code I see this WARN:

                              Code:
                              *14:42:58.261:MUP9:WARN:drawing:adaptiveMenu_menuButton:Attempt to draw child of an undrawn parent - ignoring
                                  Canvas.readyToDraw()
                                  Canvas.draw(_1=>undef, undef, undef)
                                  StatefulCanvas.draw(_1=>undef, _2=>undef, _3=>undef)
                                  AdaptiveMenu.createMenuButton()
                                  AdaptiveMenu.createChildren()
                                  AdaptiveMenu.layoutChildren(_1=>"resized", 0, -70)
                                  Canvas.$t1(_1=>undef, _2=>undef)
                                  Canvas.resizeBy(_1=>null, _2=>-70, _3=>undef, _4=>undef, _5=>undef, _6=>undef)
                                  Canvas.resizeTo(_1=>null, _2=>30, _3=>undef, _4=>undef, _5=>undef, _6=>undef, _7=>undef)
                                  Canvas.setHeight(_1=>30)
                                  Layout.setMemberBreadth(_1=>[AdaptiveMenu ID:adaptiveMenu], _2=>30)
                                  Layout.autoSetBreadth(_1=>[AdaptiveMenu ID:adaptiveMenu])
                                  Layout.$2w()
                                  Layout.drawChildren()
                                  ** recursed on Canvas.draw
                              on iOS I see the the clipped menuButton:

                              Click image for larger version  Name:	2024-09-04 14.59.06.jpg Views:	0 Size:	56.5 KB ID:	273506
                              Please let me know if you need more details

                              Last edited by claudiobosticco; 4 Sep 2024, 05:15.

                              Comment


                                #30
                                Please note that there are other similar issues, such as the menuButton being clipped (and sometimes not even clickable), and the menuItem showing the wrong enabled state.
                                These issues occur when you start adjusting values in the form while there isn't enough space for the ToolStripButtons.
                                However, I didn't want to make the video and description too long, as I believe and hope that these are all related problems.

                                Comment
