pickerNavigationBar on handset devices

[claudiobosticco]

SmartClient Version: v13.1p_2024-11-19/AllModules Development Only (built 2024-11-19)

I see the fixes, thank you very much

[Isomorphic]

hi Claudio,

The bug from #7 has been addressed - there will be either 2 or 3 icons in portrait, with titles in landscape, depending on the value of addUnknownValues, and the textItem will fill the remaining space.

We also added the icon and canAdaptWidth settings to the nav buttons for SelectItem, as requested.

Please retry with tomorrow's build, dated November 15, or a later one.

[Isomorphic]

hi Claudio - we're looking at this one right now and will update here shortly.

[claudiobosticco]

Hello, any news about the issue from post #7 ?

[claudiobosticco]

Hello, I was wondering that also the SelectItem would deserve the icons you added to the buttons for the ComboBoxItem ;)

[Isomorphic]

Thanks Claudio. These issues are caused by there being a hidden button when addUnknownValues is false, whose dimensions are apparently still being included by adaptive-width measuring logic - it's assigned to be fixed and we'll get to it shortly.

[claudiobosticco]

Hello, maybe you're working on it and it's too early for testing, but anyway, this is with addUnknownValues:false, the first time I open the picklist:



and this is the 2nd time I open it:



This is with Twilight:

[claudiobosticco]

SmartClient Version: SNAPSHOT_v13.1d_2024-08-14/AllModules Development Only (built 2024-08-14)

Hello, when in landscape mode on an iPhone 8, on the right it seems there's space for a 3rd button (with addUnknownValues:false):



also, is it expected that the pickList and pickerNavigationBar doesn't resize when switching between landscape and portrait with the pickList visible?

for example this is landscape to portrait:

[Isomorphic]

hi Claudio,

Yes, we fixed scaling for the formItem and fixed the icon so that it's a proper stockIcon, so an SVG is Shiva, and can be sized and scaled with documented properties.

We've now also addressed the issue with the buttons - from tomorrow's builds, these buttons will have icons and they'll have canAdaptWidth set to true - when you switch to portrait on a phone, the buttons will switch to icon-only display to save space.

[claudiobosticco]

Hello, I also noticed that the pickerSearchForm doesn't scale with density, it's always 3opx tall

this last issue it's fixed in the latest build, thanks.

[claudiobosticco]

Hello, I also noticed that the pickerSearchForm doesn't scale with density, it's always 3opx tall

[claudiobosticco]

when I say too crowded, I mainly mean the fact that the textItem becomes too short, especially thinking about the case in which it is used to add a value not present in the list

[claudiobosticco]

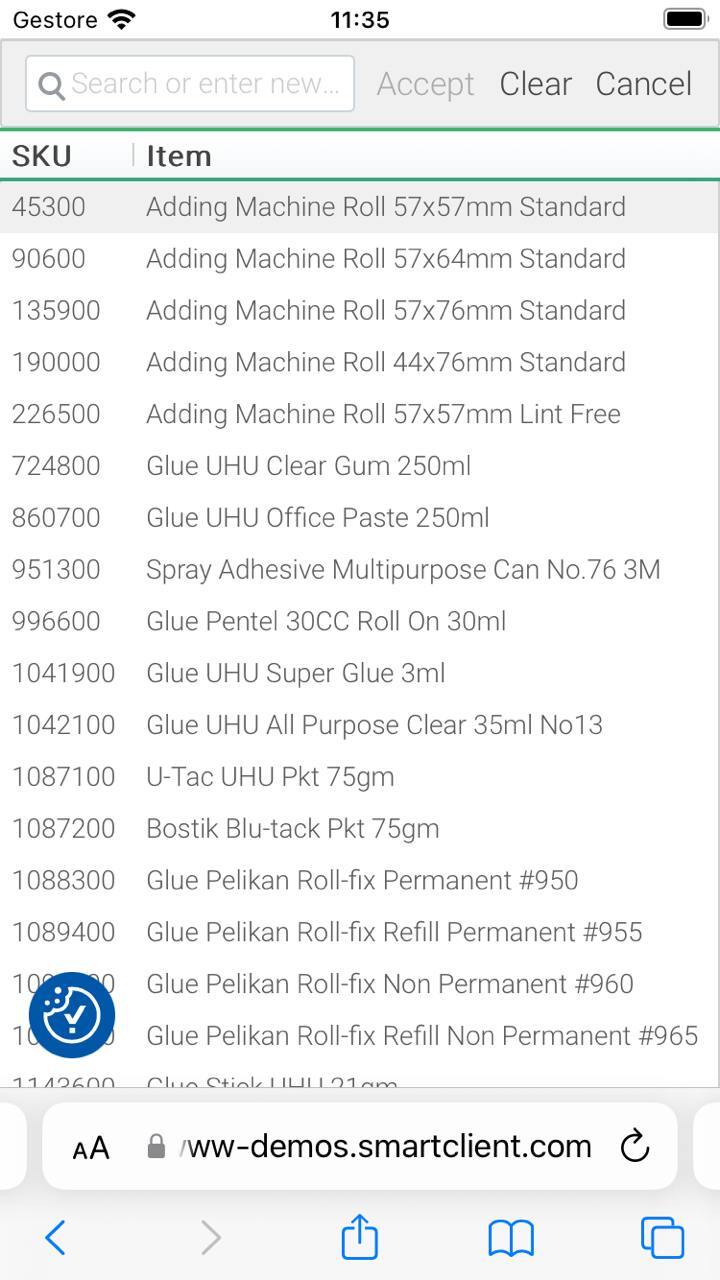

Hello, I just noticed that the pickerNavigationBar, when addUnknownValues is enabled, is a bit too crowded, at least on smaller handset devices:



this is the iPhone SE Simulator. It gets worse with more "expanded" density, and also with different locales (in Italian the button titles are longer).

Is it possible to tweak the NavigationBar, for instance to have the pickerSearchForm on one line and the buttons on another?
