ListGrid headerSpans and print/export to PDF

[mgreenberg]

We are using SmartClient 8.3 (9-17 build) and noticed that doing a simple print with ListGrid headerSpans doesn't print properly. See attached.

Here is a simple test case:

isc.ListGrid.create({
    ID: "countryList",
    width:500, height:350,
    alternateRecordStyles:true,
    data: countryData,
    fields: [
        {name: "countryName", title: "Country"},
        {name: "capital", title: "Capital"},
        {name: "continent", title: "Continent"}
    ],
    headerHeight: 40,
		headerSpans: [{
			fields: ["countryName", "capital", "continent"],
			title: "Header Span"
		}]
});

isc.Button.create({
    ID : "buttonPdf",
    width: 150,
    title:"Export",
    click:function () {
           var settings = {
	    skinName: "Enterprise",
	    pdfName: "export"// without .pdf
	    };
           isc.RPCManager.exportContent(mainLayout, settings);
        }
});
isc.Button.create({
    ID : "buttonPreview",
    width: 150,
    title:"Show Print Preview",
    click:function () {
	    mainLayout.showPrintPreview();
        }
});
isc.VLayout.create({
	ID: "mainLayout",
	width: 500,
    height: 350,
    members: [
        countryList,
		buttonPdf,
		buttonPreview
    ]
});

[Isomorphic]

You didn't attach your .pdf, but we see no issue with the latest patched build of 8.3.

Also, we have no record of a recent fixed bug in this area, so not sure how you could have an issue in a 9-17 build.

[mgreenberg]

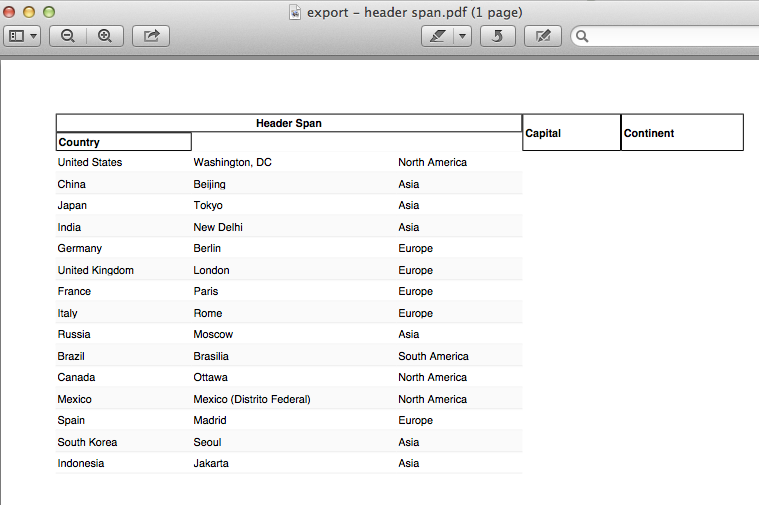

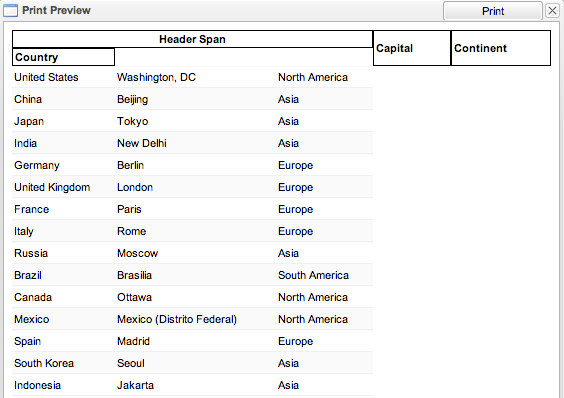

Sorry I forgot to attach the snapshot. Attached is a snapshot of the print preview and also a snapshot of the exported PDF (Pdf files are not allowed to be attached in the forums).

Maybe this issue was fixed in the latest patched 8.3 and 9.0 builds as a result of some other fix.

[Isomorphic]

Always possible. Please let us know if you find this isn't fixed in the latest patched build.

[mgreenberg]

I downloaded the latest 9.0 build and it seems to be fine there.

Thanks.
