Portlet with round edges: body overlaps border

[d.cavestro]

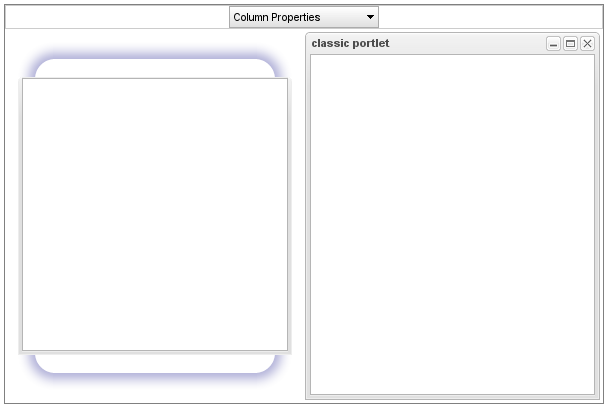

In order to obtain a portlet with rounded borders (looking like corners example) I've set the showEdges and edgeImage properties, but the body of the portlet actually overlaps the border, as you can see in the following screenshot



The following code reproduces the issue in the SmartClient showcase (I think its version is 9.0) both with Firefox 17.0.9, FF 24.0 and Chrome 30.0

isc.PortalLayout.create({
    width: 600,
    height: 400,
    portlets: [
        [
            [
                isc.Portlet.create({
                    title: "round portlet",
                   showHeader: false,
                   showShadow: false,
                   showEdges: true,
                   edgeImage: 'http://smartclient.com/v/9.0/isomorphic/system/reference/exampleImages/corners/glow_35.png',
                   edgeSize: 35,
                   margin: 10,
                   border: 0
                }),
                isc.Portlet.create({
                    title: "classic portlet"
                })
            ]
        ]
    ]
});

I originally reproduced it with similar code in SmartGWT 4.0, in the same browser.

UPDATE: I've found a partial workaround abandoning default PortalLayout/Portlet implementations and falling back to a HLayout container with VStack columns and VLayout pseudo-portlets (derived from manual portal layout sample).
The main side effect of this implementation is that it doesn't allow portlets to span across columns in a way similar to the sample shown at http://www.smartclient.com/smartgwt/..._portal_layout.

[d.cavestro]

Any idea? Isomorphic?
Just to clarify: I've found a way to obtain rounded edges pseudo-portlets, but they cannot span both vertically and horizontally; I had to re-implement them in order to avoid some overlapping on the body of the portlet, hence loosing the features of the real PortalLayout.

I attached above a screenshot of the overlap. The pseduo-portlets are implemented as per the manual portal layout example.

[d.cavestro]

Solved

I've solved the issue following the instructions found at http://stackoverflow.com/questions/1...s-in-smart-gwt
