13.0p+ ListGrid rotated titles column width change

[Blama]

Hi Isomorphic,

rechecking this thread I noticed a change in the rotated titles sample between v12.1p_2023-06-24 and v13.0p_2023-06-21.

As the rotated titles are there to save horizontal space I'm pretty sure it's a regression that they need way more space in 13.0p/13.1d than in 12.1p.

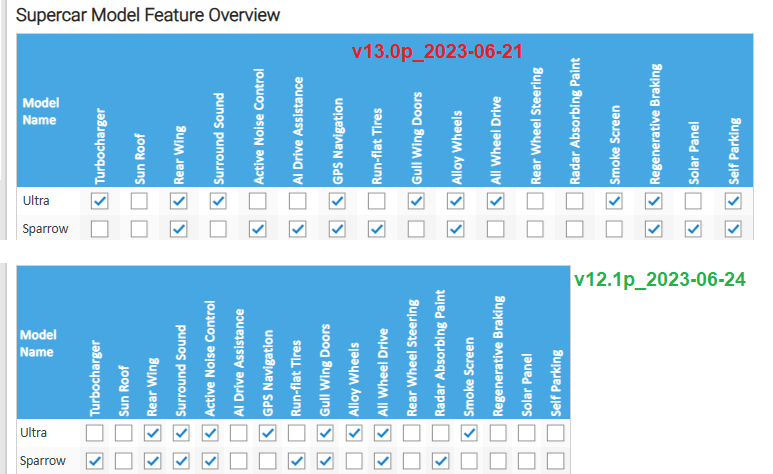

Please see the attached picture (Win10, Edge 114, FullHD, no browser zoom).

Best regards
Blama

[Isomorphic]

hi Blama ,

Are you setting a density in the framework? It looks perhaps like the image is using Spacious density - if so, the difference is likely the introduction of density-related spacing in 13.0.

thanks

Isomorphic Support

[Blama]

Hi Isomorphic,

the images show up like that when I open the showcase from the links in #1. Both open up in Tahoe spacious.

If there was a change here in 13.0p, perhaps this should only be applied for normal non-rotated titles?

Best regards
Blama

[Isomorphic]

The padding causing the effect is being applied to the field-content, in this case around the checkboxes, rather than the headers.

[Blama]

Hi Isomorphic,

perhaps it would help then if you could explain how to disable this or reduce the padding in the rotateHeaderTitles-docs.

I don't think that it's possible to do this somehow via resizeControls just for one ListGrid, correct?
There are already defaultDateFieldWidth and similar properties for Date-field widths, but non for boolean fields. I assume that boolean fields will be the main use case for rotateHeaderTitles: true.

Best regards
Blama
